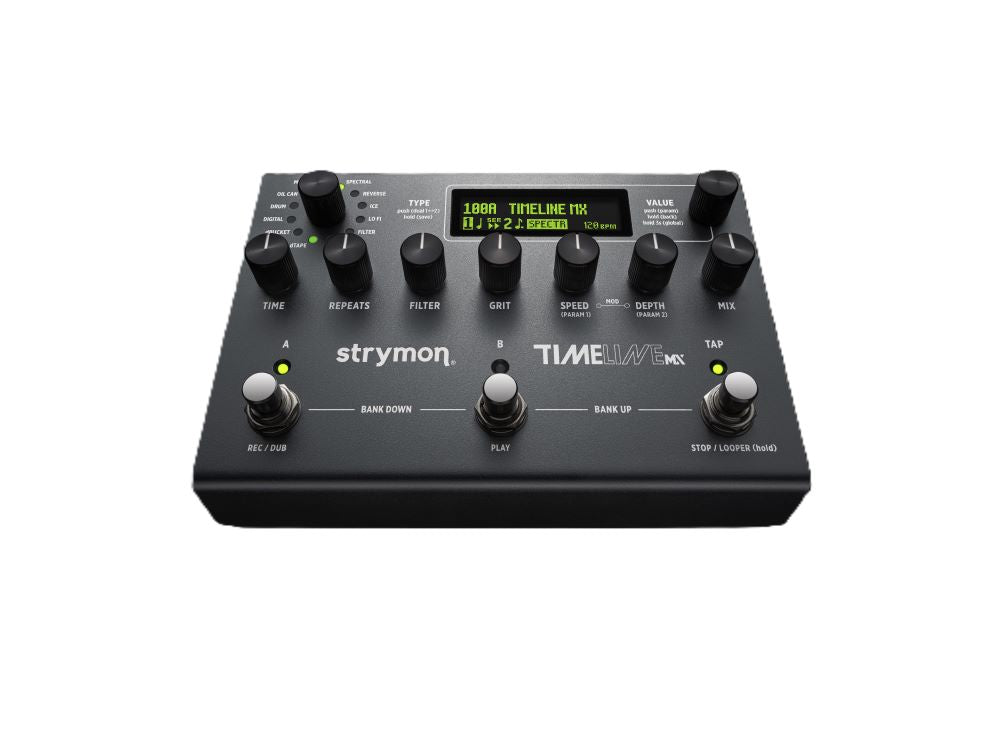

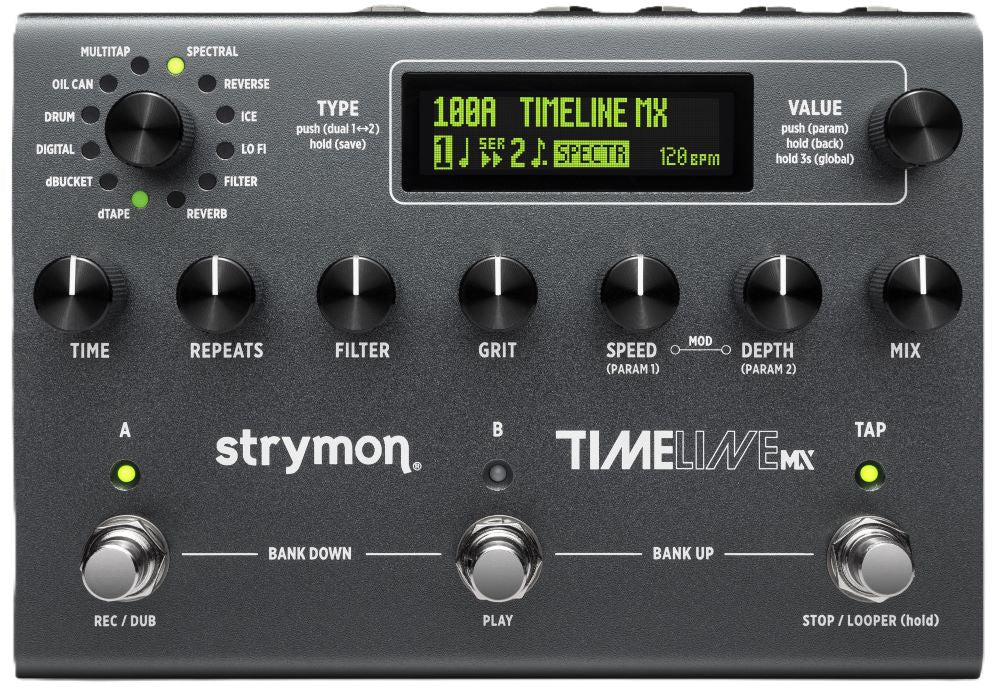

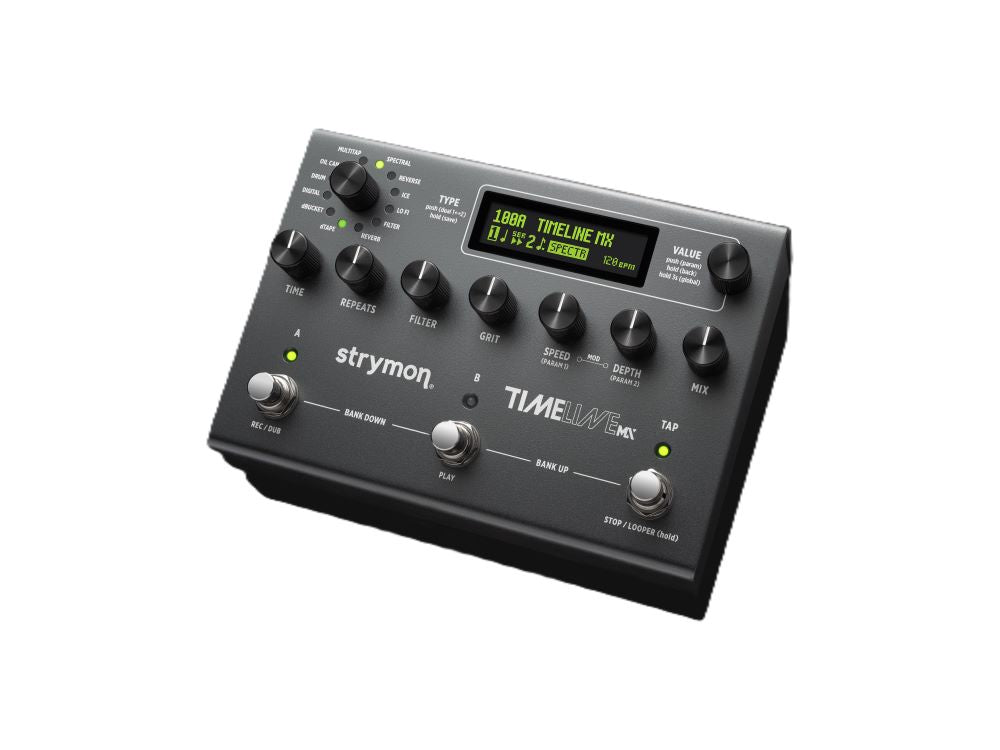

Strymon TimeLine MX - Next Gen Multi-Delay Workstation

FEATURES

• 12 premium delay machines including new Oil Can, Spectral, Drum, Reverb, and Multitap engines
• Dual-engine architecture with Series, Parallel, and Split routing
• Studio-quality delay and dedicated reverb engine in one pedal
• Five-minute stereo looper with selectable multi or one-button operation
• Stereo inputs, outputs, and stereo send/return with multiple routing options
• Powerful 800MHz tri-core ARM processor with 32-bit floating point processing
• Full MIDI control via USB-C, TRS, and 5-pin DIN
• OLED display with intuitive stage-ready interface
• Dedicated Tap Tempo footswitch
• Analog dry path with selectable True or Buffered Bypass
• Premium JFET analog input stage
• Expression pedal, MultiSwitch, and MIDI compatibility
• Compatible with Strymon Nixie 2 editor software
• Designed and built in the USA

DESCRIPTION

Introducing the Strymon TimeLine MX, the next generation of professional delay pedals. Combining breathtaking studio-quality sound with an incredibly powerful processing platform, TimeLine MX delivers an unmatched collection of vintage-inspired echoes, modern ambient textures, rhythmic delays, lush reverbs, and advanced sound design capabilities—all housed in an intuitive, performance-ready pedal.

Powered by a high-performance 800MHz tri-core ARM processor, TimeLine MX recreates every nuance of classic delay technologies with remarkable realism while offering entirely new sonic possibilities. Choose from twelve meticulously crafted delay machines, including all-new Oil Can, Spectral, Drum, Multitap, and Reverb engines, alongside enhanced versions of the legendary Tape, Bucket Brigade, Digital, Reverse, ICE, Filter, and Lo-Fi delays.

TimeLine MX's dual-engine architecture allows two effects to run simultaneously with flexible Series, Parallel, or Split routing. Combine two different delays, layer delay with reverb, or create expansive stereo soundscapes with independent panning for each engine. A luxurious new reverb engine, inspired by Strymon's acclaimed Flint pedal, delivers everything from intimate rooms to massive ambient washes while adding optional tremolo modulation and adjustable grit for even greater tonal flexibility.

Built for both studio and stage, TimeLine MX features a five-minute stereo looper that can be placed before or after the effects chain, with both traditional and one-button operation for seamless live performance. Extensive connectivity includes stereo inputs and outputs, stereo effects loop capability, full MIDI implementation over USB-C, TRS, and 5-pin DIN, expression pedal support, and compatibility with Strymon's Nixie 2 editor software for complete preset management and deep editing.

Whether you're recreating classic tape echoes, building intricate rhythmic patterns, crafting cinematic ambient textures, or exploring entirely new sonic landscapes, the Strymon TimeLine MX delivers exceptional sound quality, unmatched flexibility, and professional performance for every guitarist and musician.

SPECIFICATIONS

• Delay Engines: Tape, Bucket Brigade, Digital, Drum, Oil Can, Multitap, Spectral, Reverse, ICE, Lo-Fi, Filter, Reverb
• Simultaneous Effects: Two independent engines
• Routing Modes: Series, Parallel, Split
• Looper: 5-minute stereo looper
• Display: High-contrast OLED
• Processor: 800MHz Tri-Core ARM
• Internal Processing: 32-bit Floating Point
• A/D & D/A Conversion: 24-bit / 96kHz
• Signal-to-Noise Ratio: 116dB Typical
• Maximum Input Level: +10dBu
• Input Impedance: 1M Ohm
• Output Impedance: 100 Ohm

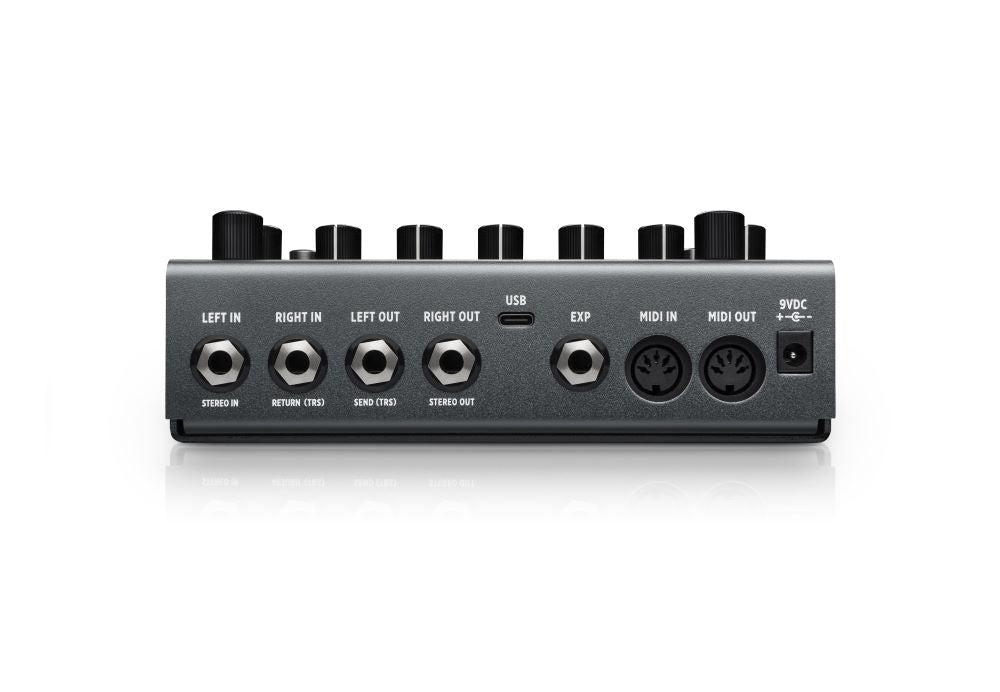

• Inputs: Stereo TRS
• Outputs: Stereo TRS
• Effects Loop: Stereo Send/Return with configurable routing
• MIDI: USB-C, TRS, 5-pin DIN
• USB: USB-C for firmware updates, MIDI, and Nixie 2 editor
• Expression Input: Supports expression pedal, MultiSwitch, MultiSwitch Plus, and TRS MIDI
• Tap Tempo: Dedicated footswitch
• Bypass Modes: True Bypass or Buffered Bypass
• Dry Signal Path: Analog dry path
• Input Level: Selectable Instrument or Line Level
• Chassis: Lightweight anodized aluminum
• Dimensions: 7" (W) x 5" (D) x 1.87" (H)
• Power Requirements: 9V DC (sold separately), center-negative, 500mA minimum
• Country of Origin: Designed and built in the USA

*9V power supply (500mA minimum) sold separately
