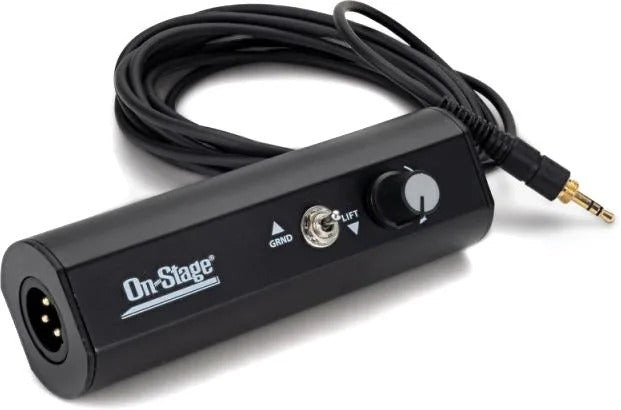

Onstage DB100 Passive Laptop Direct Box

FEATURES

• Mono DI for laptops and 3.5mm audio sources
• Passive operation
• Balanced XLR mic-level output
• 3.5mm plug
• Adjustable volume
• Built-in transformer and ground-lift switch
• Metal housing provides long-lasting functionality

DESCRIPTION

The DB100 Laptop DI Box eliminates noise and ground loops that often occur when using consumer audio devices with a PA system.

Simply connect its 3.5 mm plug to the headphone jack of a laptop or digital music player, and this compact DI automatically converts the audio signal to a balanced, mic-level XLR output suitable for use with high-powered amplifiers. The volume knob enables additional adjustment of the output level while the ground-lift switch provides control over hum caused by ground loops.

Passive and transformer based, this DI does not use a power supply and delivers electrical isolation for convenient, reliable sound preservation.

SPECIFICATIONS

• Type: Passive Direct Box
• Channels: 1
• Ground Lift: Yes
• Inputs: 1 x 1/8" plug
• Outputs: 1 x XLR
• Height: 1.3"
• Width: 1.6"
• Depth: 4.7"
