6 isolated, filtered outputs for small to mid-sized boards
Low-profile housing designed for Pedaltrain® under-board mounting
Attaches directly to Pedaltrain® rails — no additional hardware needed
Includes drill template for custom mounting
Worldwide input voltage: 100–240Vac, no transformer needed
Cables and converter plugs included
DESCRIPTION

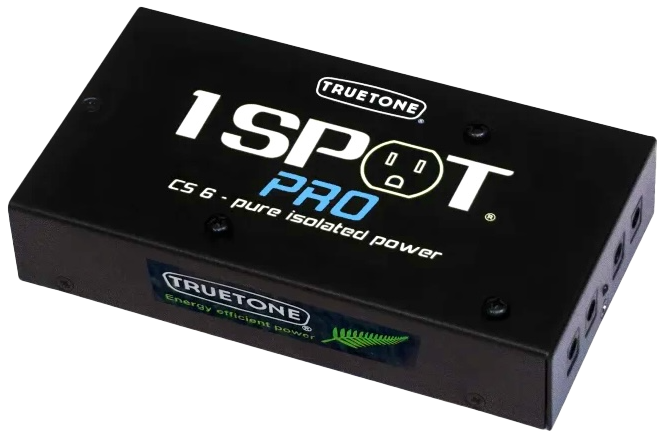

The CS6 is designed from the ground up for under-board mounting on Pedaltrain® (and other) pedalboards. Its low-profile housing attaches directly to the rails — no separate mounting bracket needed. Six isolated outputs, worldwide voltage, and complete cable management in one tidy package.
SPECIFICATIONS
Dimensions: 88 x 160 x 31mm (3.46 x 6.30 x 1.22")
Weight: 590 grams (1.3 lbs.), power supply only

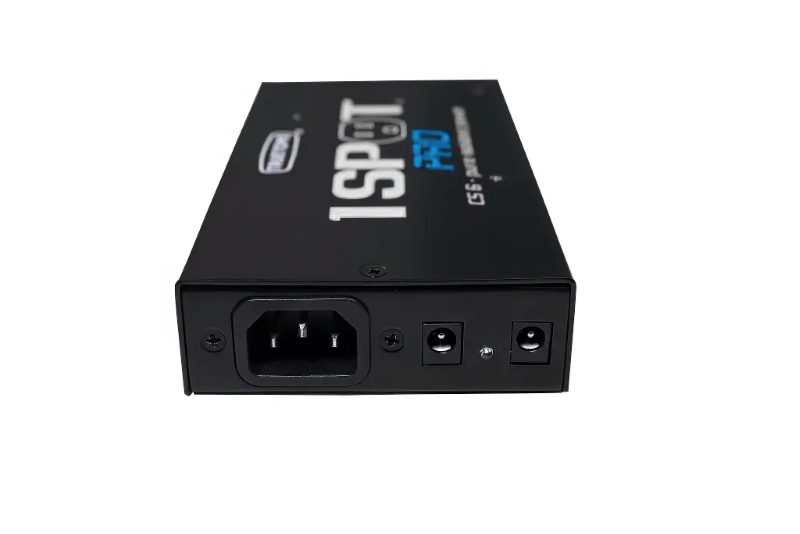

Input Voltage: 100–240Vac (worldwide)

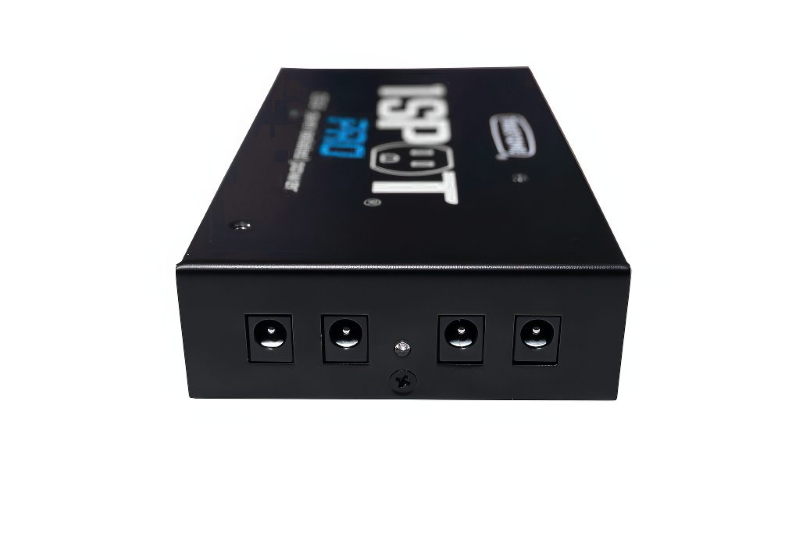

Total Outputs: 6 independently isolated

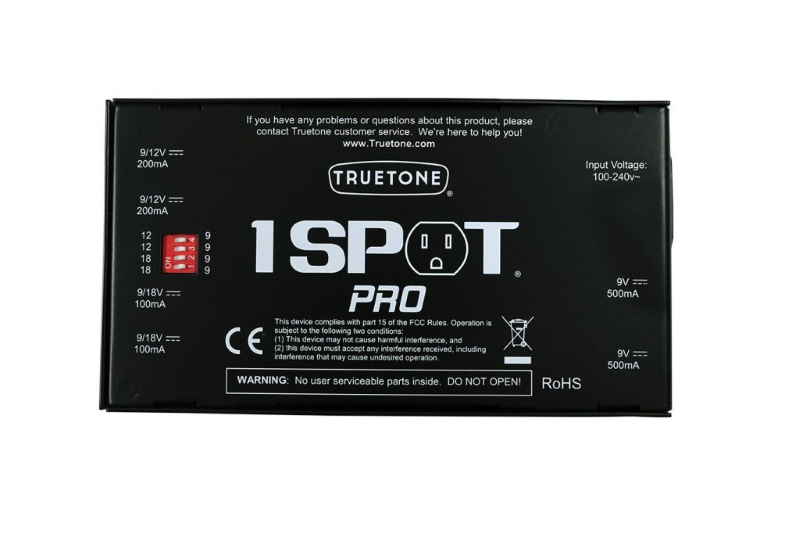

Outputs 1–2: 9Vdc, 500mA each
Outputs 3–4: 9Vdc/18Vdc switchable, 100mA each
Outputs 5–6: 9Vdc/12Vdc switchable, 200mA each
Mounting: Direct attachment to Pedaltrain® rails via included drill template

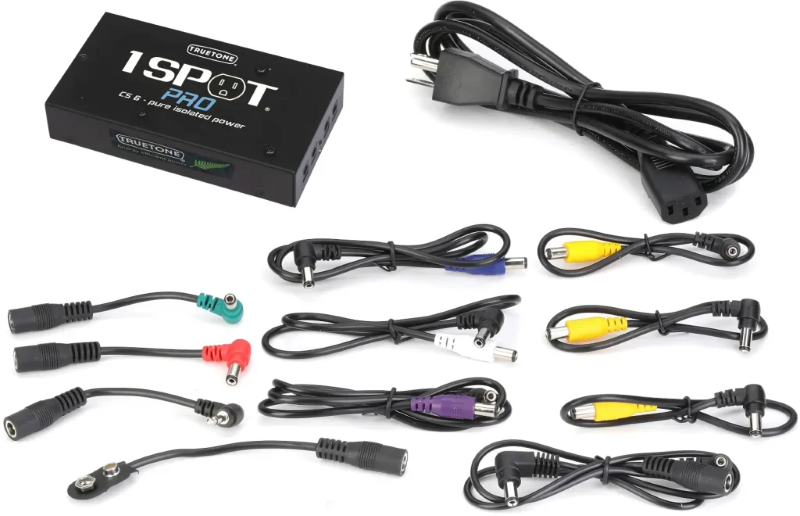

Included: DC cables, converter plugs, drill template
