FEATURES
• All-new Broad'Tron BT-3S humbucking pickups with Alnico 5 and Alnico 2 magnets

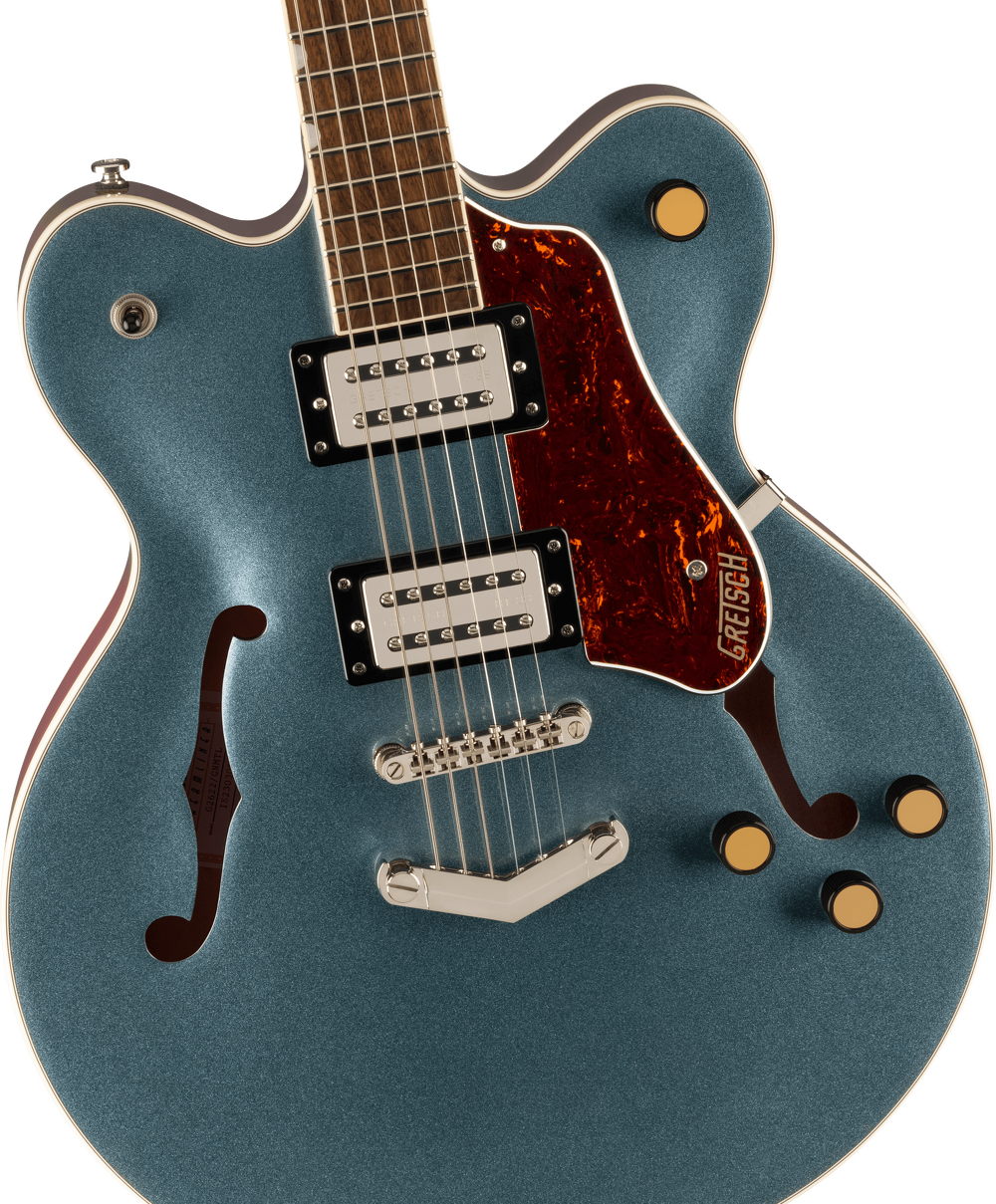

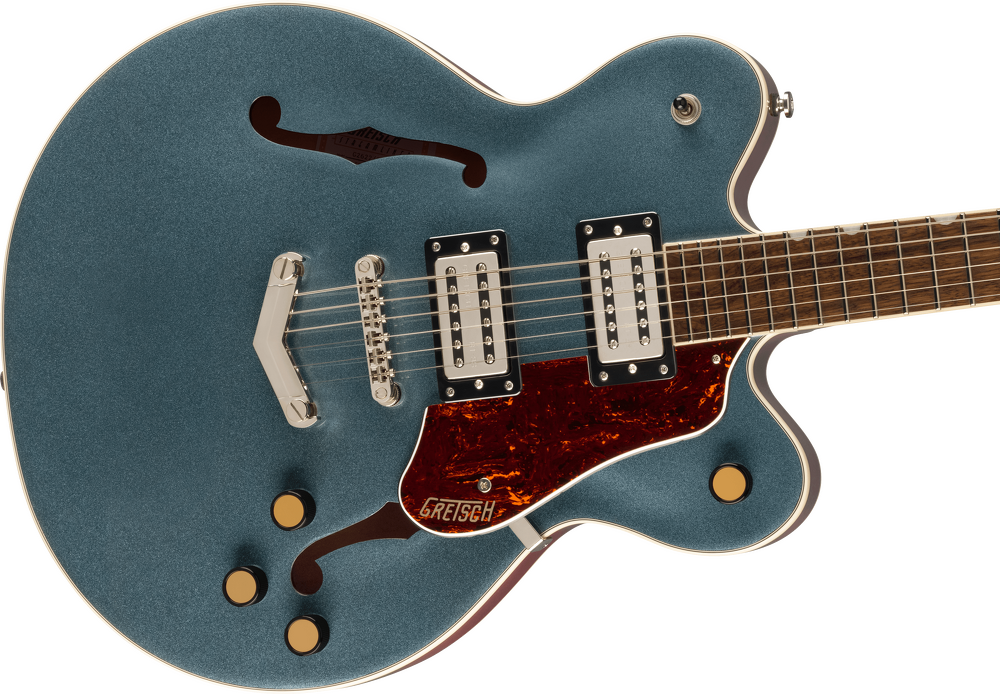

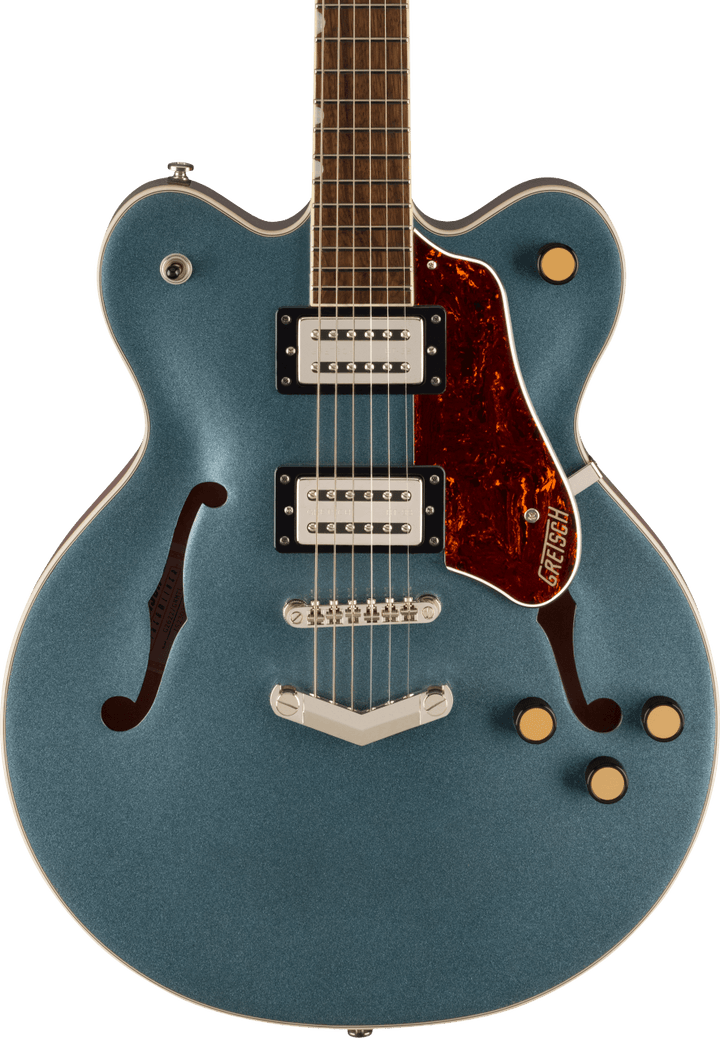

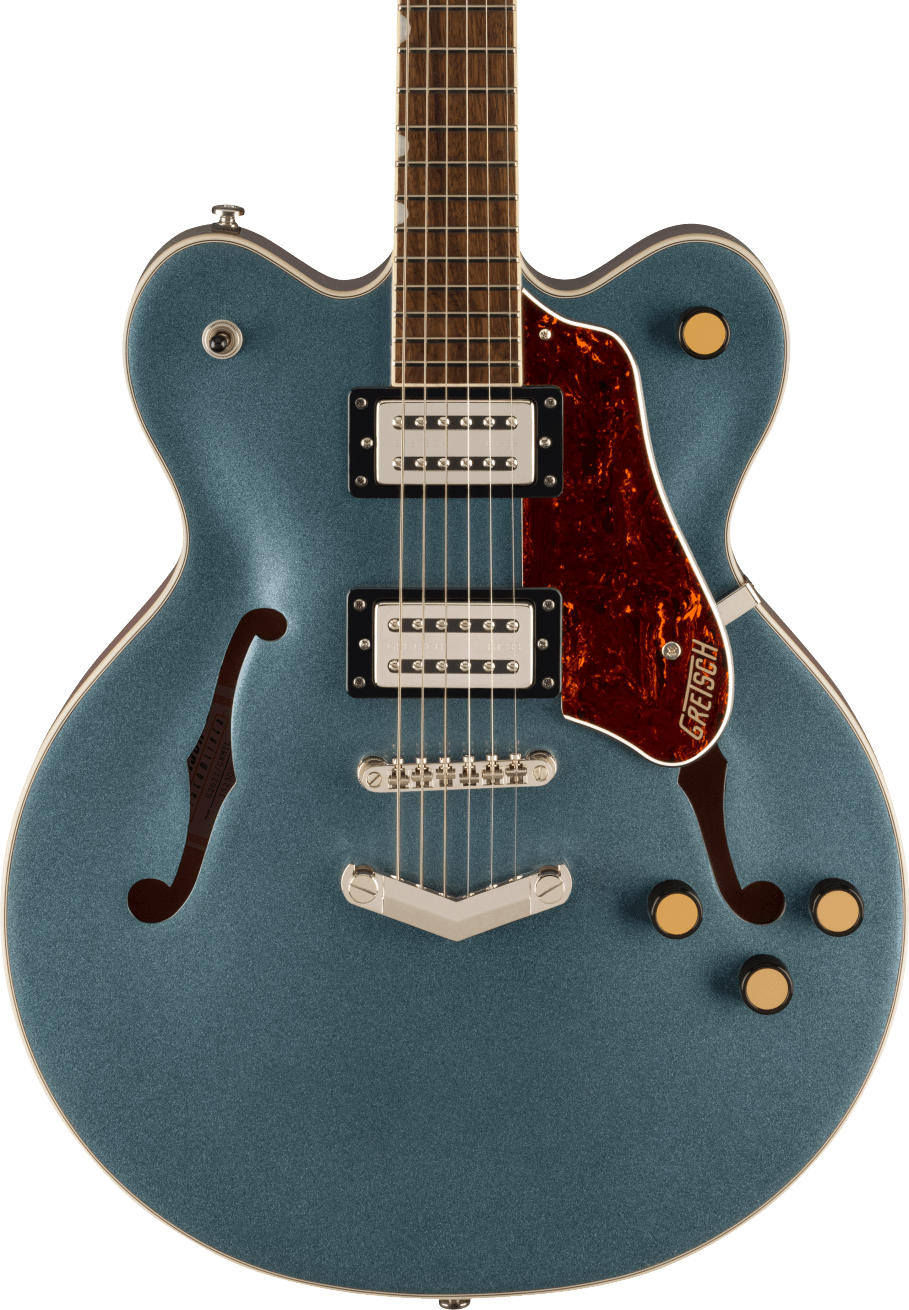

• Double-cutaway 16" arched laminated maple body with chambered center block
• Soft "C" shaped nato neck with set-neck construction
• 12"-radius laurel fingerboard with 22 medium jumbo frets
• Pearloid Neo-Classic thumbnail position inlays
• Real bone nut, 1.6875" wide
• Master volume, master tone and individual pickup volume controls
• Push/pull coil-splitting on the master volume knob
• 3-position pickup toggle switching
• Gretsch Radio control knobs
• Anchored Adjusto-Matic bridge with Gretsch V-Stop tailpiece
• Three-ply tortoise pickguard with gold Gretsch logo
• Aged white binding with B/W/B purfling on body, neck and headstock

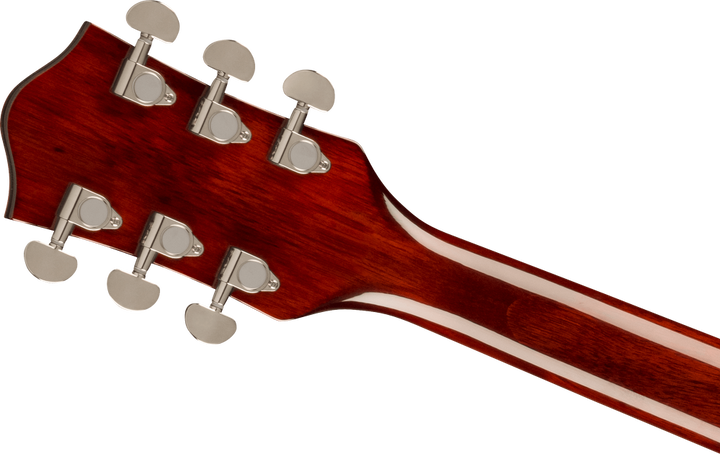

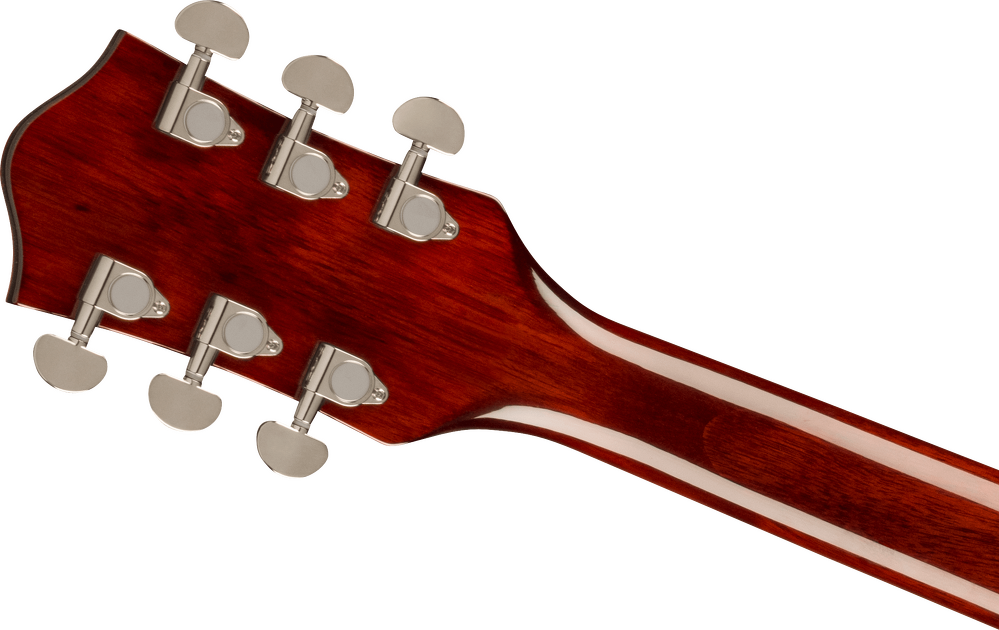

• Die-cast sealed tuning machines
• Nickel hardware and gloss Gunmetal finish
DESCRIPTION

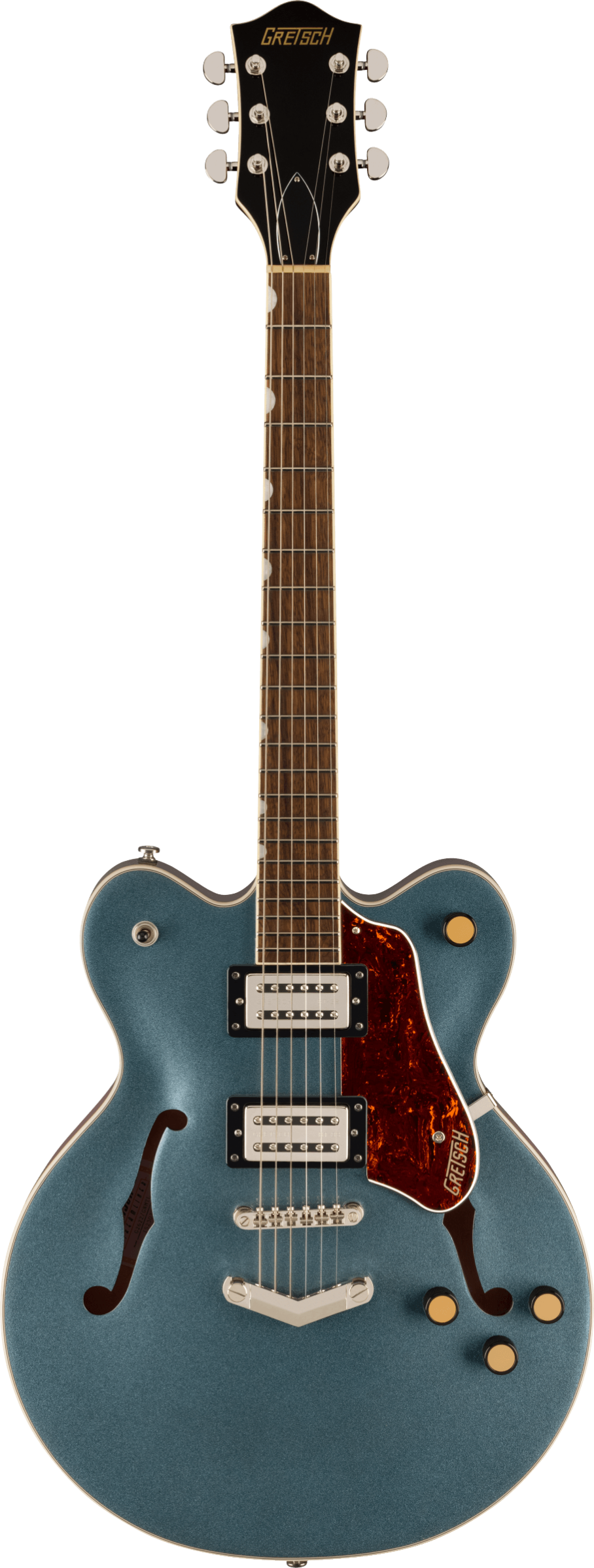

The Streamliner Collection revitalizes the best elements from Gretsch's past and combines them with exciting new features to deliver exceptional performance, sound, and style at an incredible value. The G2622 Streamliner Center Block Double-Cut with V-Stoptail bursts into the modern era with powerful sound and style, designed for the guitarist who demands more than the mundane from an instrument — more performance, more style and, most importantly, more volume — while retaining everything you expect from a Gretsch.

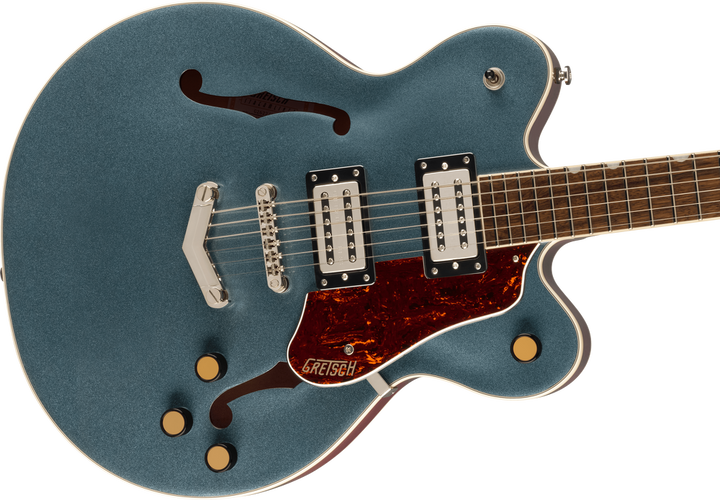

At the heart of the G2622 is a 16" arched laminated maple body with an all-new center block design under the hood. That block balances lightweight comfort with a full, rich sound and increased presence, delivering improved attack and sustain plus excellent feedback rejection in a guitar that won't weigh you down on a long night.
Electronics come by way of the new Broad'Tron BT-3S pickup set. Using a combination of Alnico 5 and Alnico 2 magnets, the BT-3S humbuckers serve up stronger mids, tight but full lows, and smooth clear highs that stay musical no matter how hard you push them.
The traditional Gretsch control layout — neck and bridge pickup volumes, master tone, master volume and three-way switching — gives you complete tone-shaping flexibility. A push/pull pot on the master volume adds coil-splitting for useful single-coil sounds, layering even more versatility onto an already strong sonic arsenal. Radio knobs, an anchored Adjusto-Matic bridge, V-Stop tailpiece, three-ply tortoise pickguard and nickel hardware finish the picture.
SPECIFICATIONS
Model Number: 2817050568
Series: Streamliner Collection
Color: Gunmetal
Number of Strings: 6
Orientation: Right-Hand
Build: Center Block
Cutaway: Double Cutaway
Body Finish: Gloss
Body Shape: Center Block
Body Material: Laminated Maple
Bracing: Center Block
Body Binding: Aged White with B/W/B Purfling

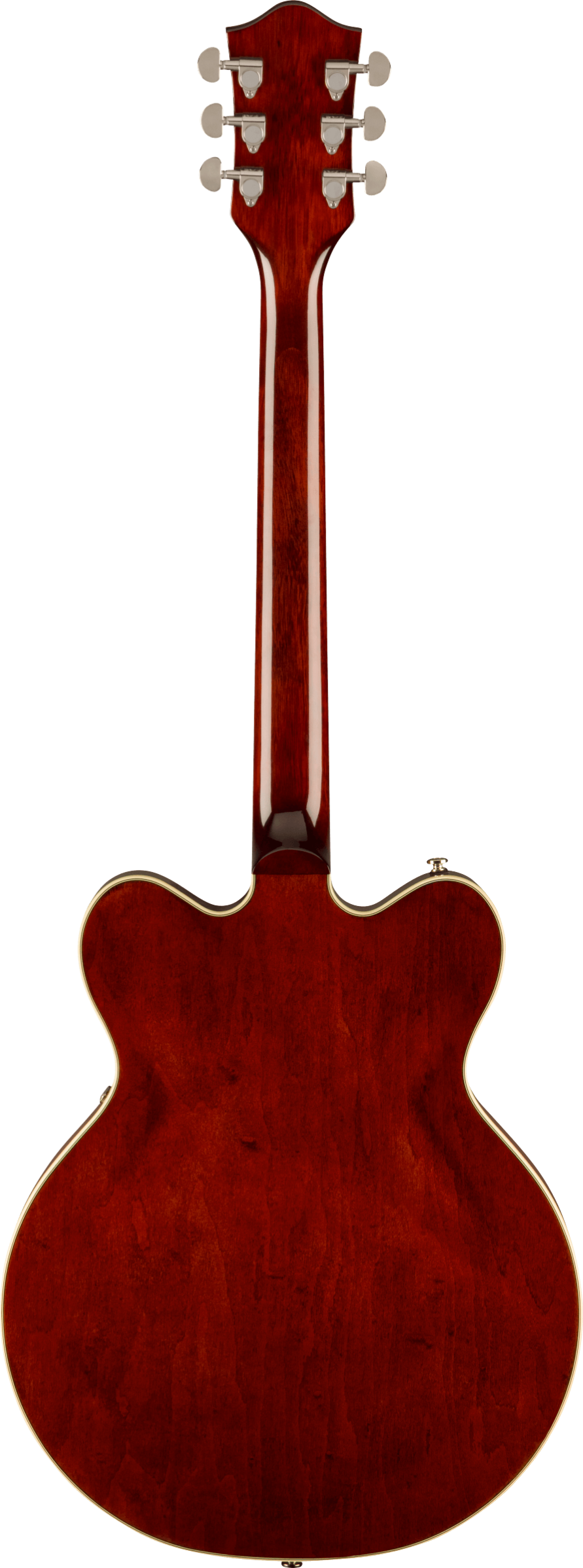

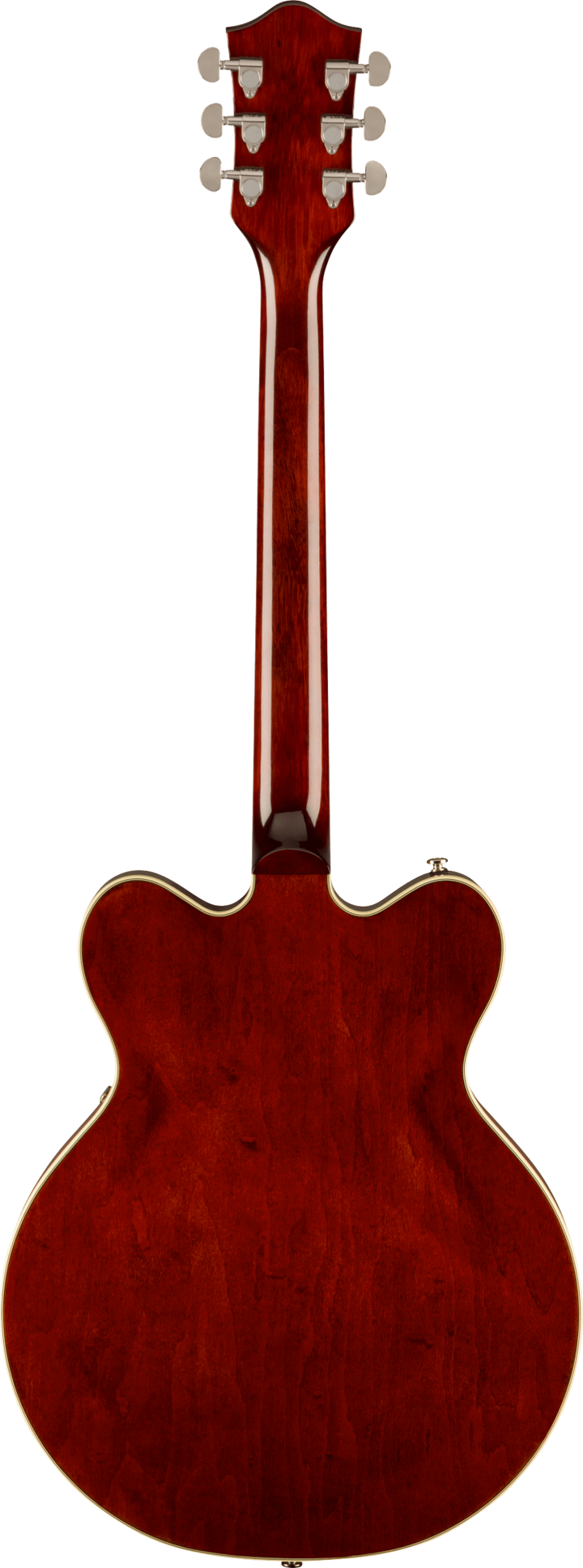

Body Back: Arched Laminated Maple
Body Top: Arched Laminated Maple
Body Depth: 1.75" (44.45 mm)
Strings: Nickel Plated Steel (.010-.046 Gauges)
Strap Buttons: Standard Strap Button
Case/Gig Bag: Optional G2622T Gretsch Hardshell (p/n 099-2622-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)
Neck Material: Nato
Neck Construction: Set-Neck
Neck Finish: Gloss
Neck Shape: Soft "C"
Neck Binding: Aged White
Scale Length: 24.75" (629 mm)
Fingerboard Radius: 12" (305 mm)
Fingerboard Material: Laurel
Number of Frets: 22
Fret Size: Medium Jumbo
Nut Material: Bone
Nut Width: 1.6875" (42.86 mm)
Position Inlays: Pearloid Neo-Classic Thumbnail
Side Dots: Black

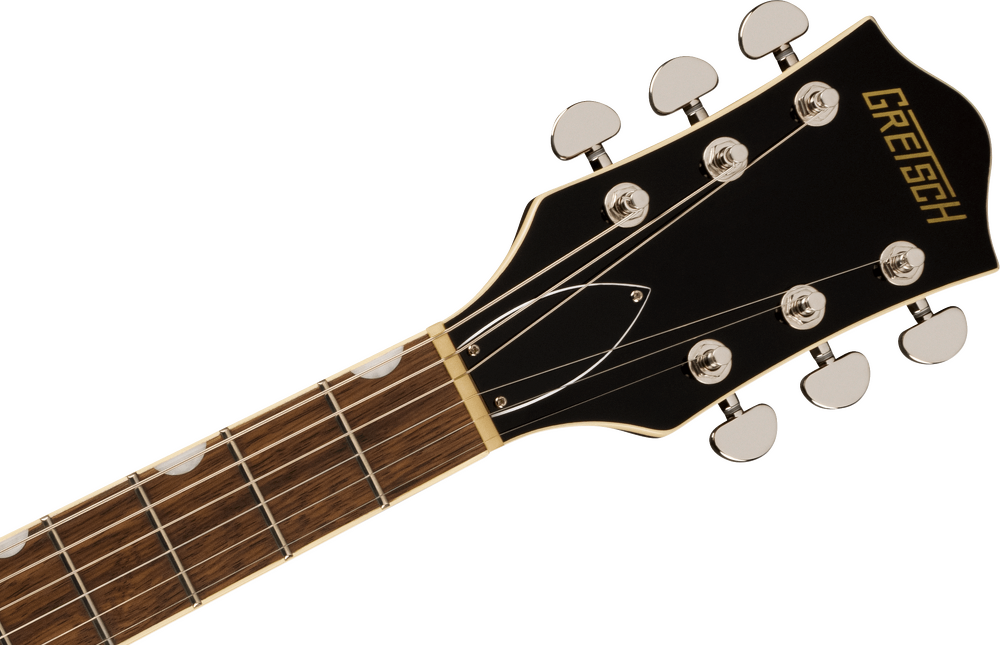

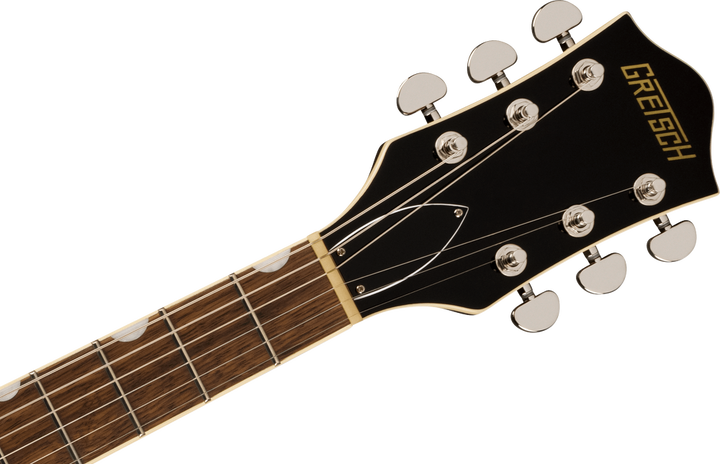

Headstock Binding: Aged White
Bridge: Adjusto-Matic
Hardware Finish: Nickel
Tailpiece: V-Stoptail
Tuning Machines: Die-Cast Sealed
Pickguard: 3-Ply Tortoise with Gold Gretsch Logo
Control Knobs: Gretsch Radio Knob
Switch Tip: Black
Bridge Pickup: Broad'Tron BT-3S
Neck Pickup: Broad'Tron BT-3S
Pickup Color: Nickel
Controls: Volume 1 (Neck Pickup), Volume 2 (Bridge Pickup), Master Tone, Master Volume with Push/Pull for Coil Split
Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Auxiliary Switching: Push/Pull Pot (for Coil Split)
Pickup Configuration: Broad'Tron / Broad'Tron
Model# 2817050568
