FEATURES
• All-new Broad'Tron BT-3S humbucking pickups at neck and bridge
• Alnico 5 and Alnico 2 magnet combination for stronger mids, tight lows and clear highs
• Double-cutaway 16" arched laminated maple body with all-new chambered center block design
• 1.75" body depth with aged white binding and B/W/B purfling
• Soft "C" shaped nato neck with set-neck construction and gloss finish
• 12"-radius laurel fingerboard, 22 medium jumbo frets and pearloid Neo-Classic thumbnail inlays
• Real bone nut, 1.6875" wide
• Master volume, master tone and individual neck/bridge pickup volume controls
• Push/pull coil-splitting on the master volume
• 3-position pickup toggle switching
• Gretsch Radio control knobs
• Anchored Adjusto-Matic bridge with Gretsch V-Stoptail

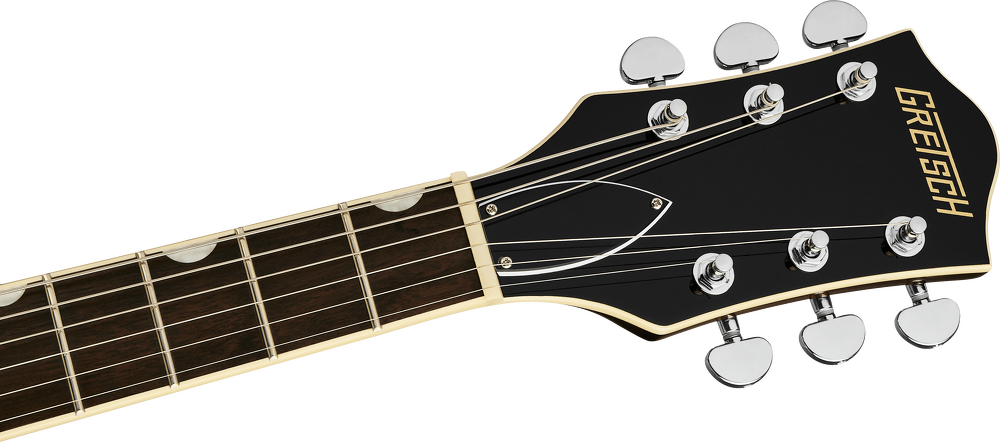

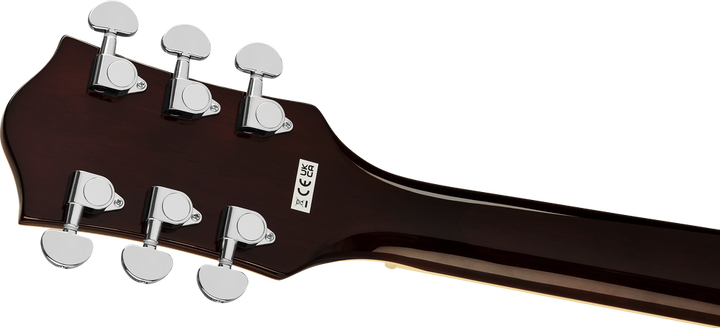

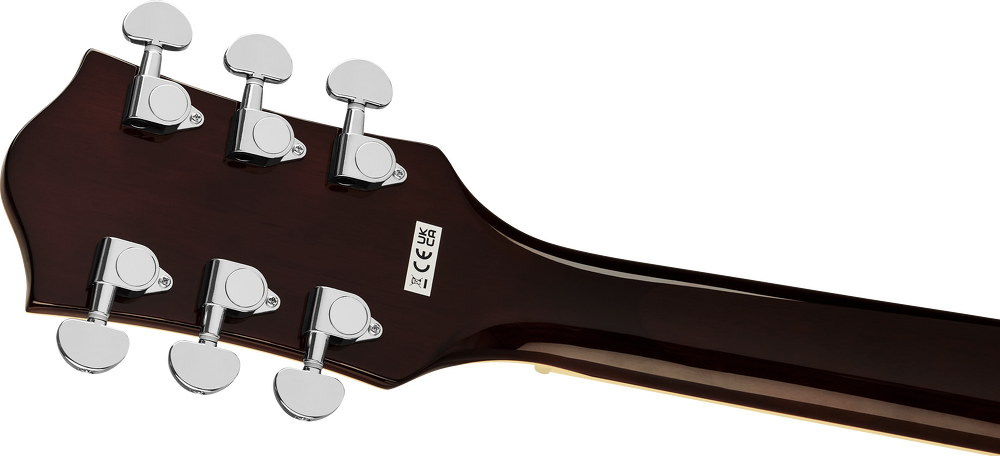

• Die-cast sealed tuning machines
• 1-ply cream pickguard with gold Gretsch logo
• Nickel hardware in Copper Metallic gloss finish
DESCRIPTION

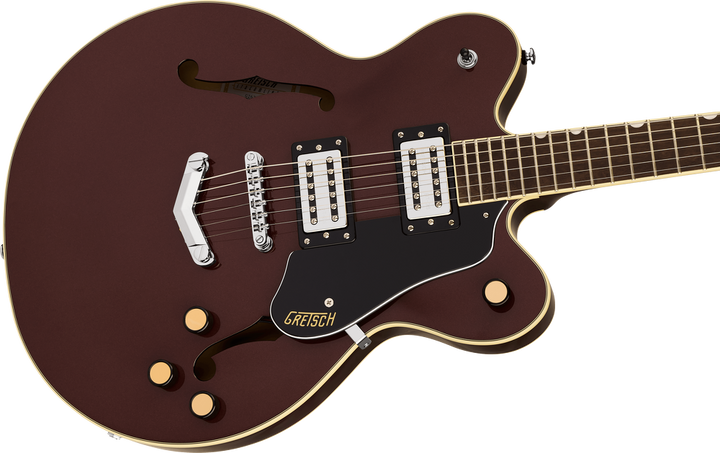

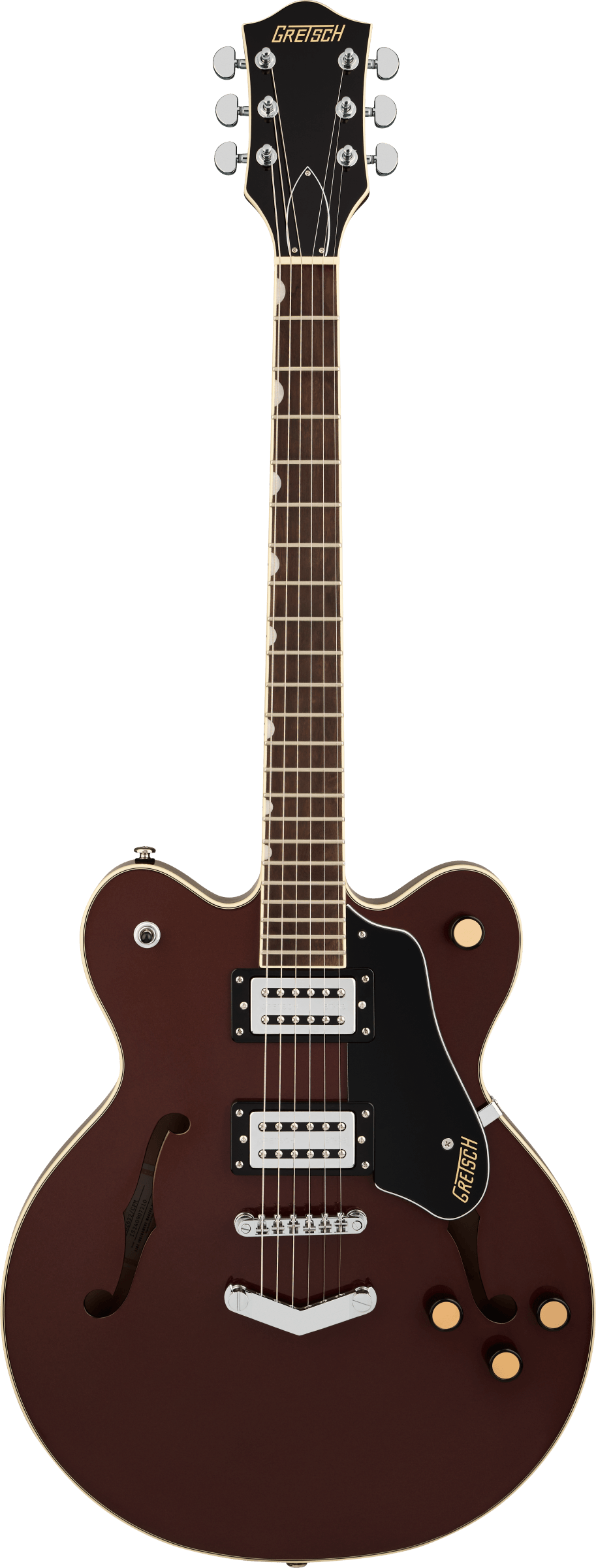

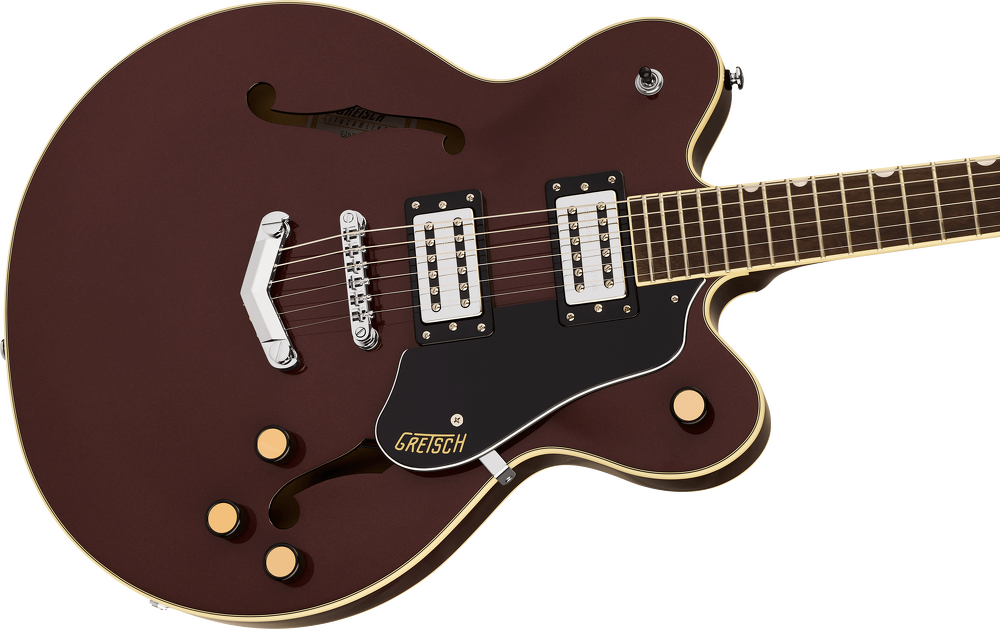

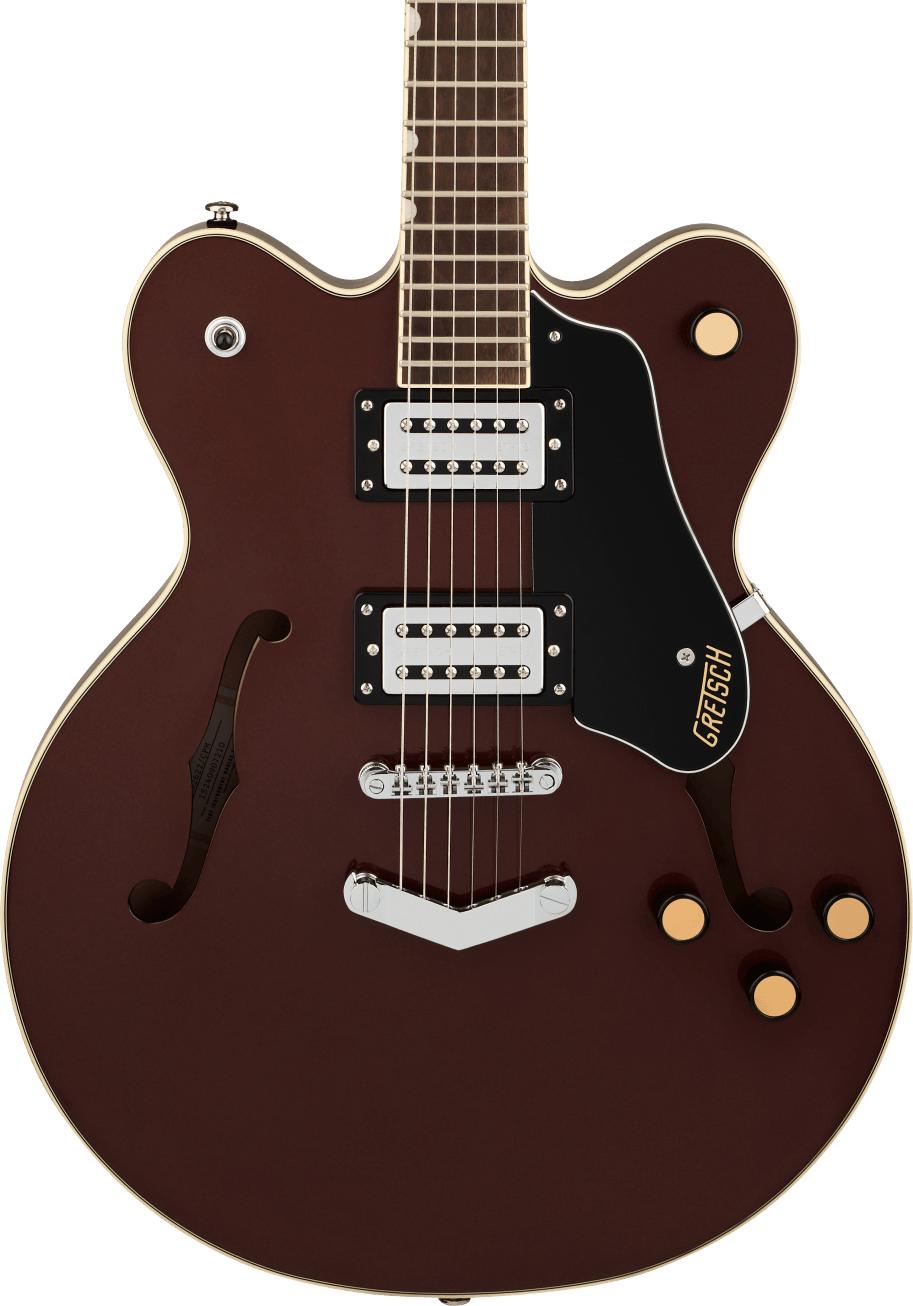

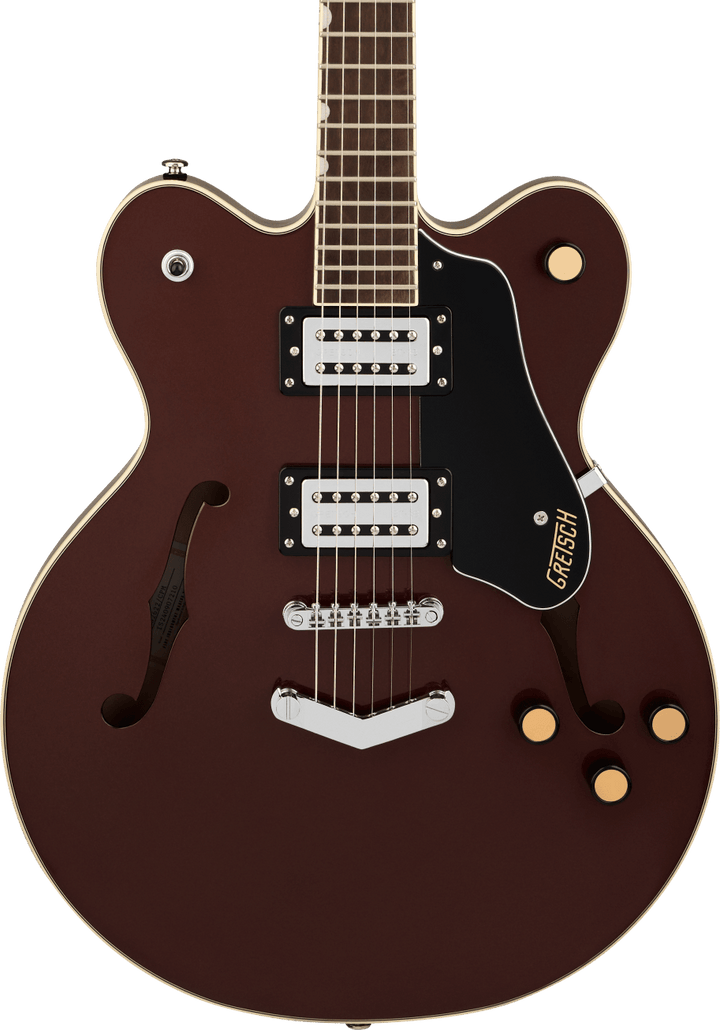

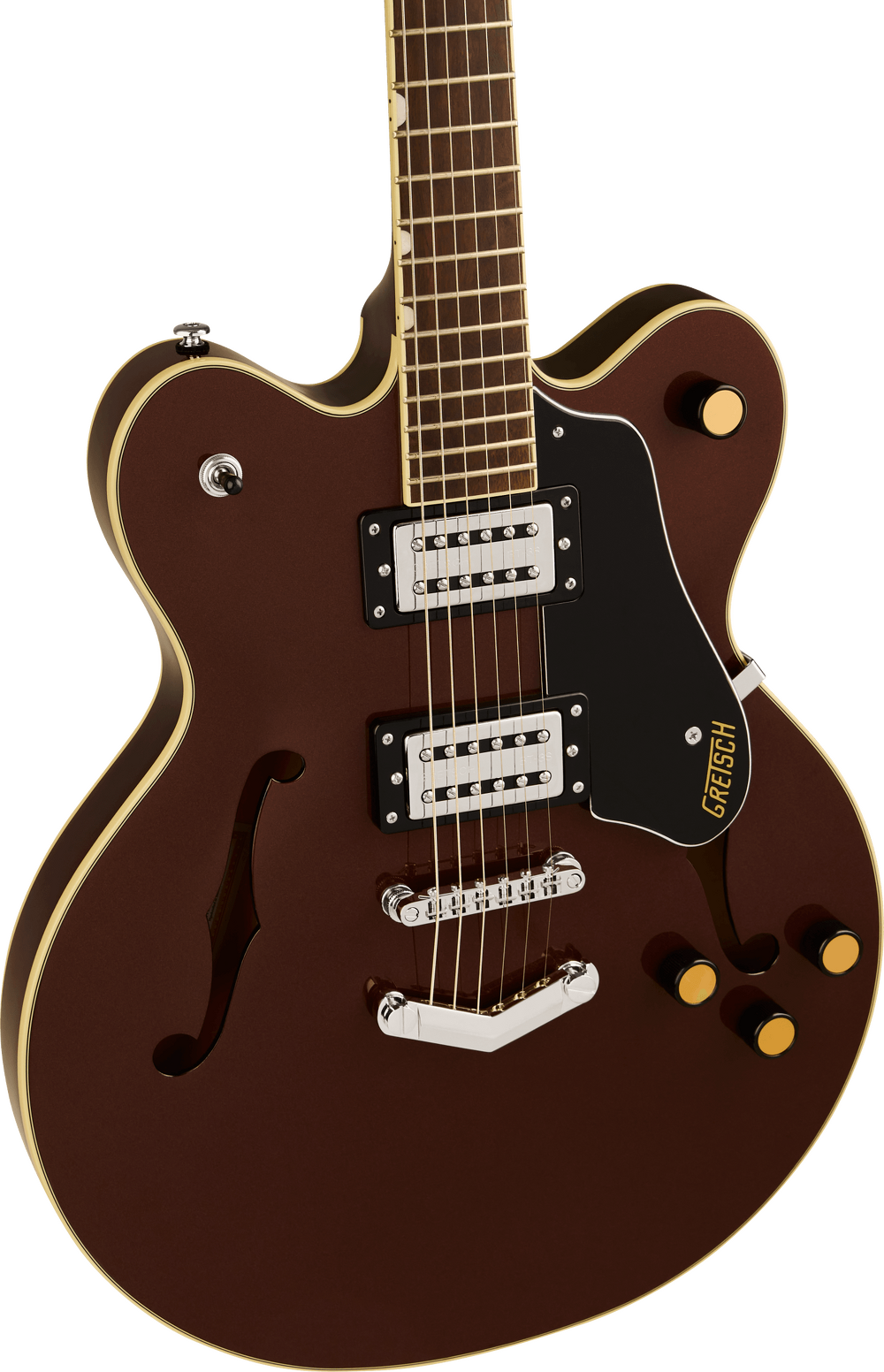

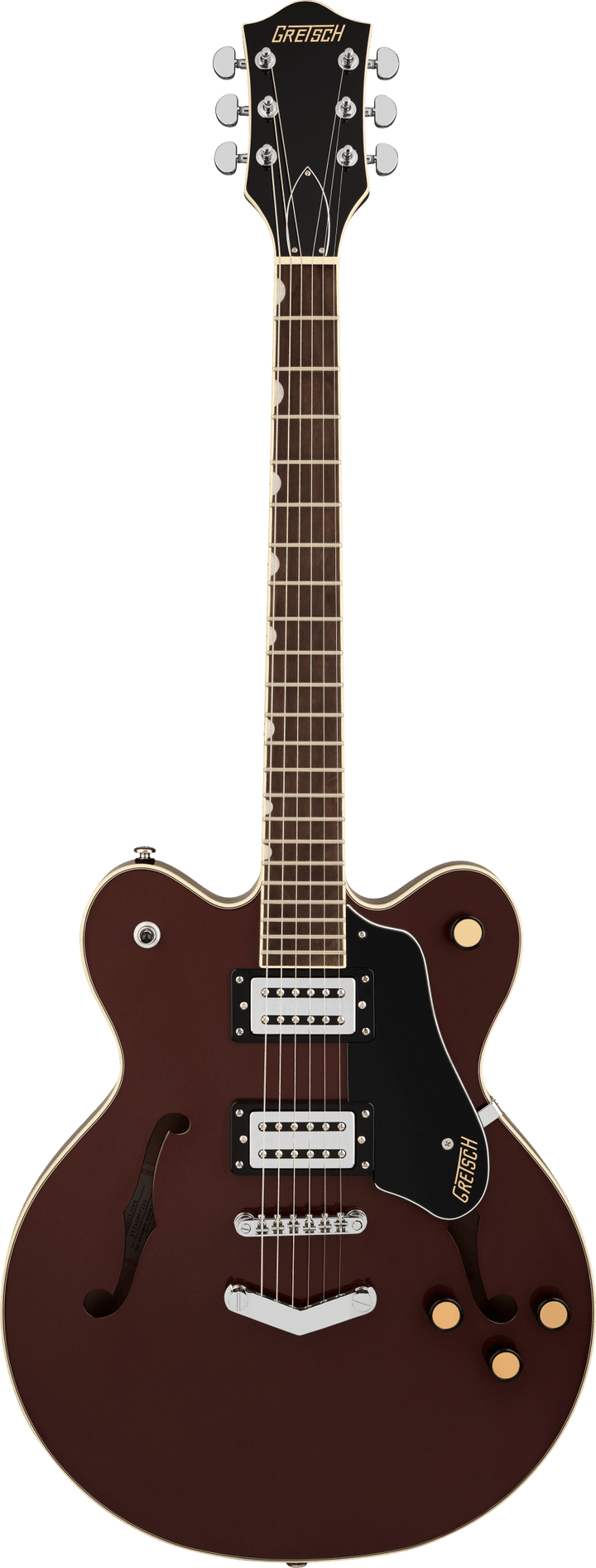

The Streamliner Collection revitalizes the best elements of Gretsch's past and combines them with exciting new features to deliver exceptional performance, sound and style at an incredible value. The G2622 Streamliner Center Block Double-Cut with V-Stoptail brings that idea into the modern era with powerful sound and unmistakable Gretsch style.
At the heart of the G2622 is a double-cutaway 16" arched laminated maple body with an all-new center block design under the hood. The center block is engineered to balance lightweight comfort with a full, rich voice and increased presence, delivering improved attack and sustain plus excellent feedback rejection — all in a guitar that won't weigh you down over a long set.
Electronics come courtesy of the all-new Broad'Tron BT-3S humbucking pickups. Using a combination of Alnico 5 and Alnico 2 magnets, the BT-3S set produces stronger mids, tight but full lows and smooth, clear highs that keep a musical presence at any volume. The traditional Gretsch control layout — neck and bridge volume, master tone, master volume and three-way switching — shapes it all, while a push/pull pot on the master volume adds useful single-coil sounds for another layer of tonal versatility.
Playability is handled by a soft "C" shaped nato neck with a 24.75" scale, a 12"-radius laurel fingerboard, 22 medium jumbo frets, pearloid Neo-Classic thumbnail inlays and a real bone nut. Anchored Adjusto-Matic bridge, Gretsch V-Stoptail, Radio knobs and nickel hardware complete the package.
SPECIFICATIONS
• Model Number: 2817050531
• Series: Streamliner Collection
• Color: Copper Metallic
• Number of Strings: 6
• Orientation: Right-Hand
• Build: Center Block
• Cutaway: Double Cutaway
• Body Shape: Center Block
• Body Material: Laminated Maple
• Body Top: Arched Laminated Maple

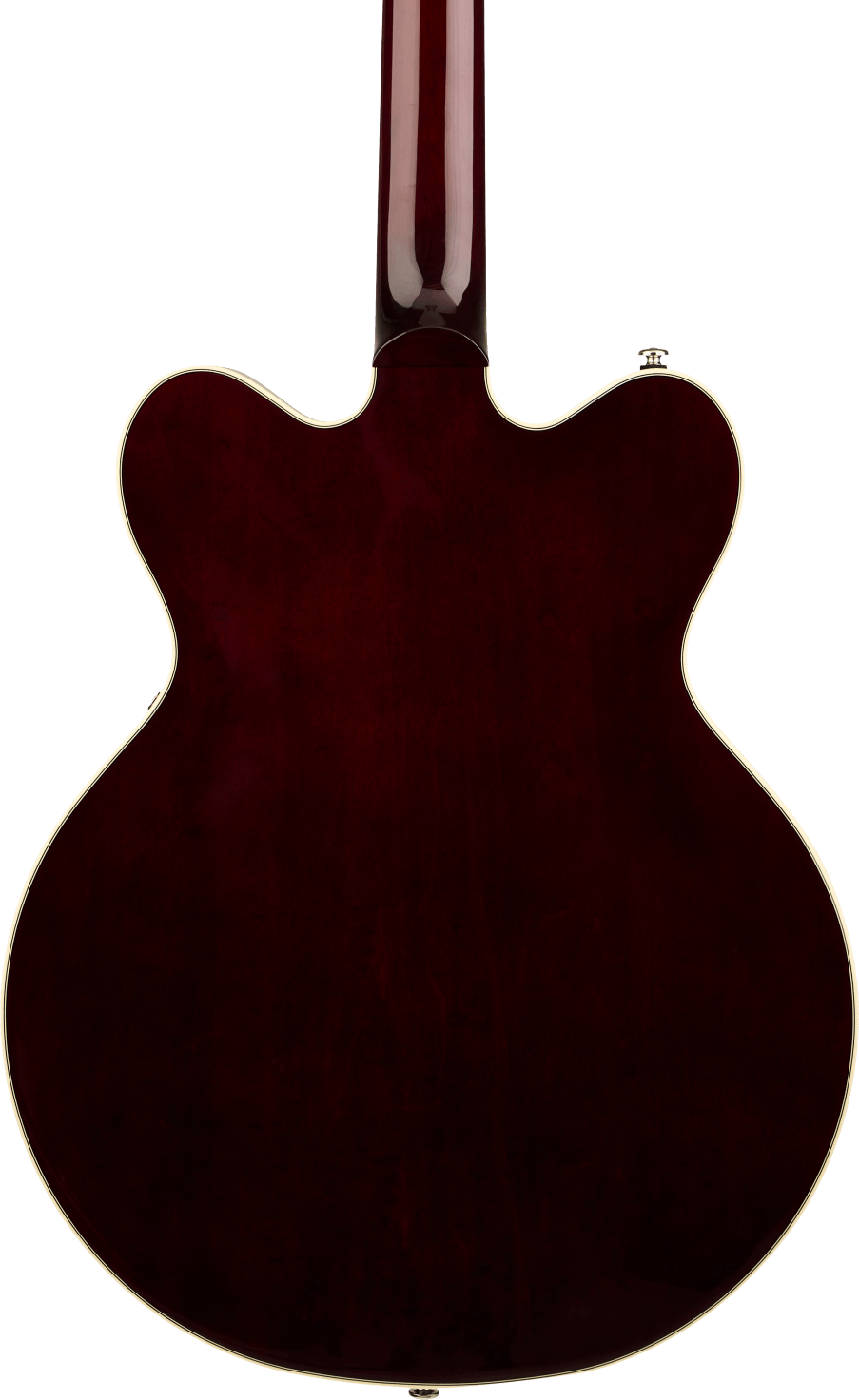

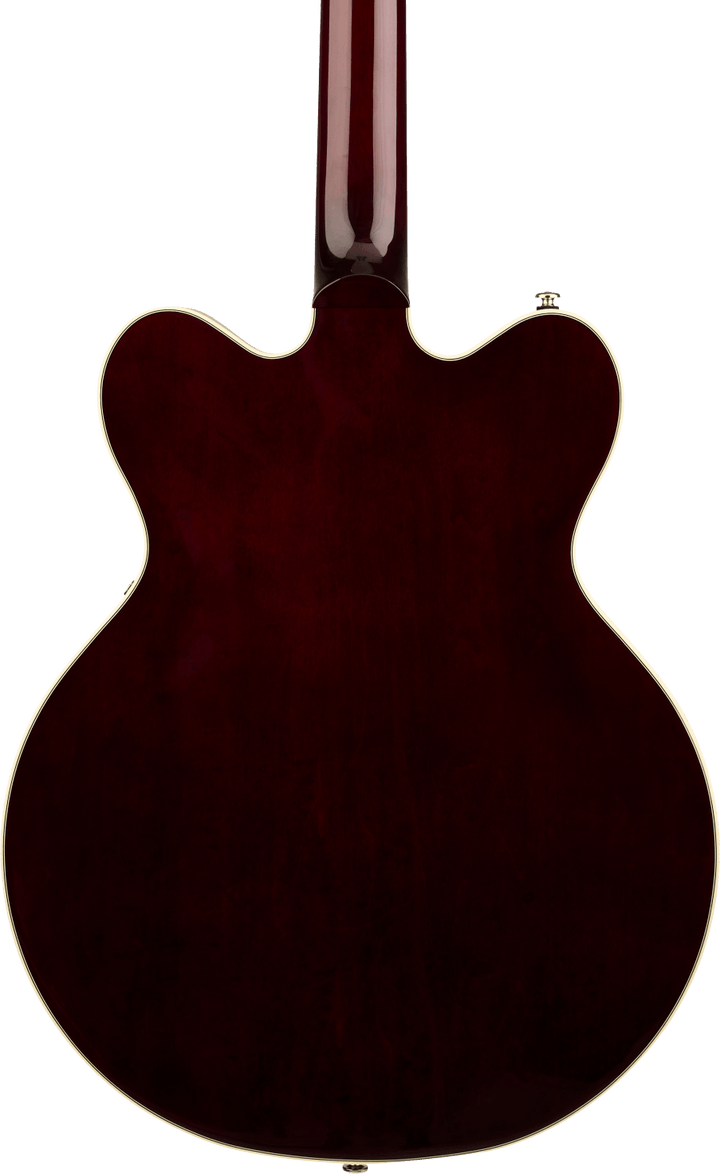

• Body Back: Arched Laminated Maple
• Bracing: Center Block
• Body Depth: 1.75" (44.45 mm)
• Body Finish: Gloss
• Body Binding: Aged White with B/W/B Purfling
• Neck Material: Nato
• Neck Construction: Set-Neck
• Neck Shape: Soft "C"
• Neck Finish: Gloss
• Neck Binding: Aged White
• Headstock Binding: Aged White
• Scale Length: 24.75" (629 mm)
• Fingerboard Material: Laurel
• Fingerboard Radius: 12" (305 mm)
• Number of Frets: 22
• Fret Size: Medium Jumbo
• Position Inlays: Pearloid Neo-Classic Thumbnail
• Side Dots: Black
• Nut Material: Bone
• Nut Width: 1.6875" (42.86 mm)
• Bridge: Adjusto-Matic
• Tailpiece: V-Stoptail
• Tuning Machines: Die-Cast Sealed
• Hardware Finish: Nickel
• Pickguard: 1-Ply Cream with Gold Gretsch Logo
• Control Knobs: Gretsch Radio Knob
• Switch Tip: Black
• Strap Buttons: Standard Strap Button
• Bridge Pickup: Broad'Tron BT-3S
• Neck Pickup: Broad'Tron BT-3S
• Pickup Configuration: Broad'Tron / Broad'Tron
• Pickup Color: Nickel
• Controls: Volume 1 (Neck Pickup), Volume 2 (Bridge Pickup), Master Tone, Master Volume with Push/Pull for Coil Split
• Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Auxiliary Switching: Push/Pull Pot (for Coil Split)
• Strings: Nickel Plated Steel (.010-.046 Gauges)
• Case/Gig Bag: Optional G2622T Gretsch Hardshell (p/n 099-2622-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)
Model# 2817050531
