• Three 12AX7 preamp tubes and a GZ34 rectifier tube
• Single 12" Celestion Custom Design speaker
• Lush tube-bias tremolo
• Two channels — Normal and Bright — with four 1/4" inputs
• Normal and Bright channel Volume and Tone controls, plus Vibrato Speed and Intensity
• Solid pine cabinet with Fender '60s brown Nubtex covering
• Wheat grille cloth, brown leather handle and brown "Cupcake" knobs
• Red LED amplifier jewel
• Two parallel 1/4" speaker jacks (internal and external)
• Rear panel Power and Standby switches
• Vintage-style brown single-button footswitch included
• Fitted brown amp cover included
DESCRIPTION
Known among players as hidden treasures from the early '60s, Fender "brown panel" amplifiers are prized for bridging the gap between the raw sound of the '50s-era tweed-covered amps and the sparkling clean tones of the mid-'60s "black panel" amps — with a distinctive sound all their own.
The '62 Deluxe Amp replicates the sound of those originals with incredibly warm, woody clean tones and mean overdrive when cranked. Add in tube-bias tremolo and you have a true desert-island amplifier.
Two 6V6 output tubes push 20 watts through a custom-designed Celestion 12" speaker, making the '62 Deluxe a natural fit for home recording and smaller gigs — and an ideal amp for Fender aficionados and collectors everywhere.
Period-correct details run throughout: a solid pine cabinet wrapped in Fender '60s brown Nubtex covering, wheat grille cloth, a brown leather handle, brown "Cupcake" knobs and a red LED jewel. A vintage-style brown single-button footswitch and a fitted brown amp cover are included.
SPECIFICATIONS
• Product Name: '62 Deluxe Amp, 120V
• Series: American Vintage
• Amplifier Type: Tube
• Wattage: 20 Watts
• Voltage: 120V
• Channels: Two (Normal and Bright)

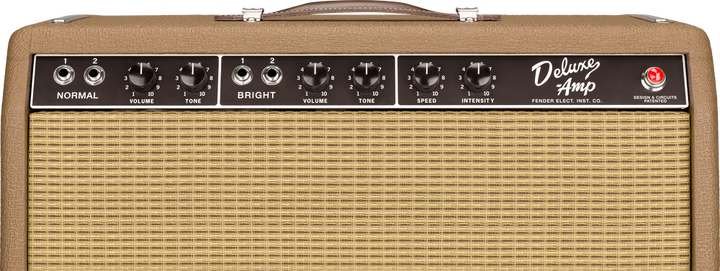

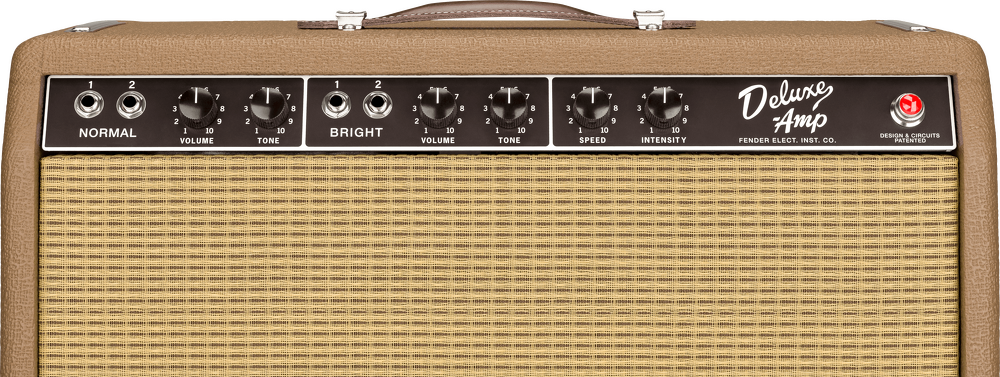

• Control Panel: Normal Channel: Volume, Tone; Bright Channel: Volume, Tone; Vibrato: Speed, Intensity

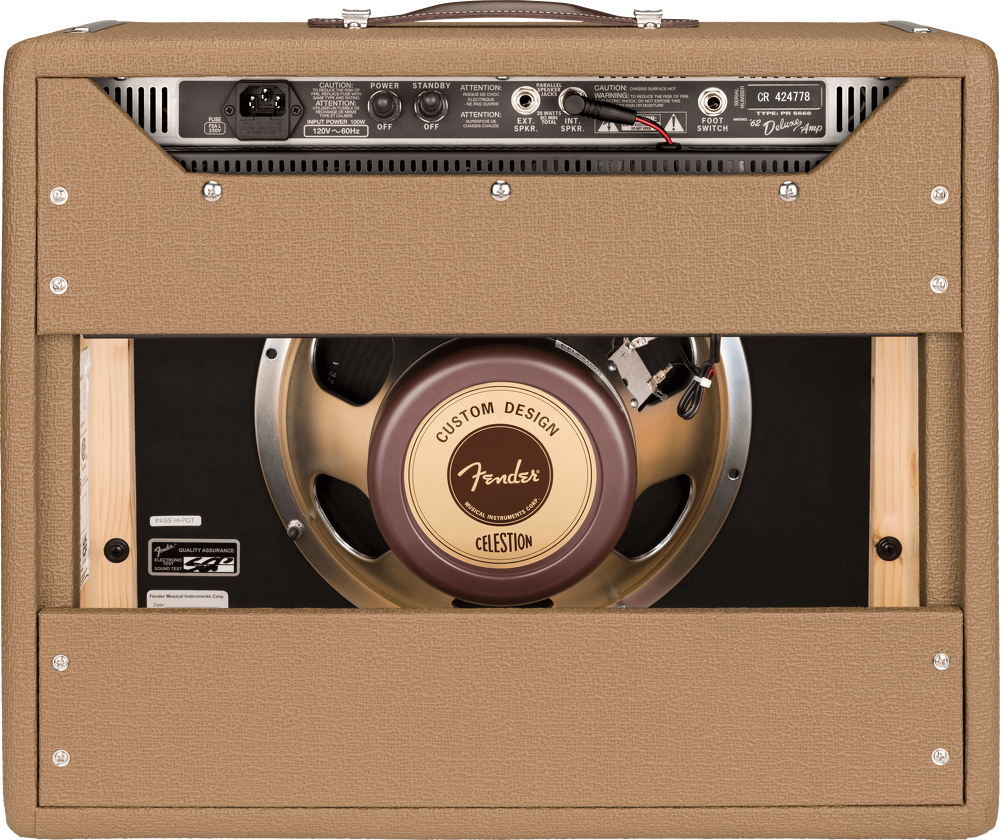

• Rear Control Panel: Power, Standby
• Effects: Tube-Bias Tremolo
• Inputs: Four (1/4", two Bright and two Normal)
• Connection Type: 1/4"
• Power Tubes: 2 x 6V6
• Preamp Tubes: 3 x 12AX7
• Rectifier: Tube (1 x 5AR4)
• Speaker: One 12" Celestion Custom Design
• Total Impedance: 8 ohms
• Speaker Jack: Two 1/4" parallel (internal and external)
• Cabinet Material: Solid Pine
• Amplifier Covering: Fender '60s Nubtex
• Grille Cloth: Wheat
• Front Panel: Brown
• Control Knobs: Brown "Cupcake" Knobs
• Amplifier Jewel: Red LED Jewel
• Handle: Brown Leather Handle
• Color: Brown and Wheat
• Footswitch: 1-Button Footswitch Included
• Power Cable: IEC
• Product Width: 21" (53.3 cm)
• Product Height: 17" (43.2 cm)
• Product Depth: 9.5" (24.13 cm)
• Product Weight: 34 lbs. (15.4 kg)
*Includes Vintage-style brown single-button footswitch, fitted brown amp cover
