Boss KTN-MINI Katana 7-Watt Mini Amplifier

FEATURES

• Katana tone in an ultra-compact, battery-powered amp

• 7 watts of rated power output

• Custom 4-inch (10 cm) speaker

• Authentic multi-stage analog gain circuit for expressive, interactive feel

• Three amp types: Brown, Crunch, and Clean

• Genuine three-band analog tone stack with Bass, Middle, and Treble knobs

• Built-in tape-style delay with dedicated Time and Level knobs

• Aux input for jamming along with a smartphone

• Phones/Rec output with cabinet voicing for private practice and recording

• Runs on six AA batteries (alkaline or rechargeable Ni-MH) or optional PSB-series AC adaptor

• Approximately 7 hours of continuous use on alkaline batteries, 9 hours on 2500 mAh Ni-MH

• Integrated handle and 2 lbs 11 oz weight for grab-and-go portability

DESCRIPTION

BOSS Katana amps earned their reputation on sound, feel, onboard effects, and value — and the Katana-Mini packs that same DNA into a small, go-anywhere amp that runs on batteries. Instead of the so-so tone you expect from a mini amp, you get an authentic multi-stage analog gain circuit, a traditional analog EQ, and an onboard tape-style delay in a package you can carry with one hand.

The all-analog input circuitry uses multiple cascaded gain stages — the same approach found in high-end amp designs — to drive three classic sound settings. Brown, derived from a core amp character in the Katana stage models, delivers expressive high-gain tones rich with harmonics for heavy riffs and soaring solos. Crunch covers rock rhythms and bluesy leads, and Clean serves up crisp, sparkling tones with punchy dynamic response. Distortion responds directly to your input volume and picking strength, so the amp feels alive under your hands.

Unlike the limited EQs found on most small amps, the Katana-Mini has a genuine three-band analog tone stack with bass, mid, and treble controls, just like a full-size stage amp. The tape-style delay adds warmth on top, with dedicated time and level knobs that take you from subtle reverb-like ambience to long, warm repeats.

BOSS built this one for real sound quality in a minimum footprint: a custom speaker, advanced hardware, refined circuitry, and carefully selected components, plus decades of energy-efficient design research that squeeze class-defying punch out of six AA batteries. At just 2 lbs 11 oz with an integrated handle, it sits happily on a tabletop or goes outside with you. Plug a smartphone into the aux input to jam with your music library or streamed tracks, or use the phones/recording output with its special cabinet voicing for mic'd amp tone through headphones or into a recorder.

SPECIFICATIONS

• Rated Power Output: 7 W

• Nominal Input Level (INPUT): -10 dBu (1 M ohm)

• Nominal Input Level (AUX IN): -10 dBu (20 k ohm)

• Speaker: 10 cm (4 inches)

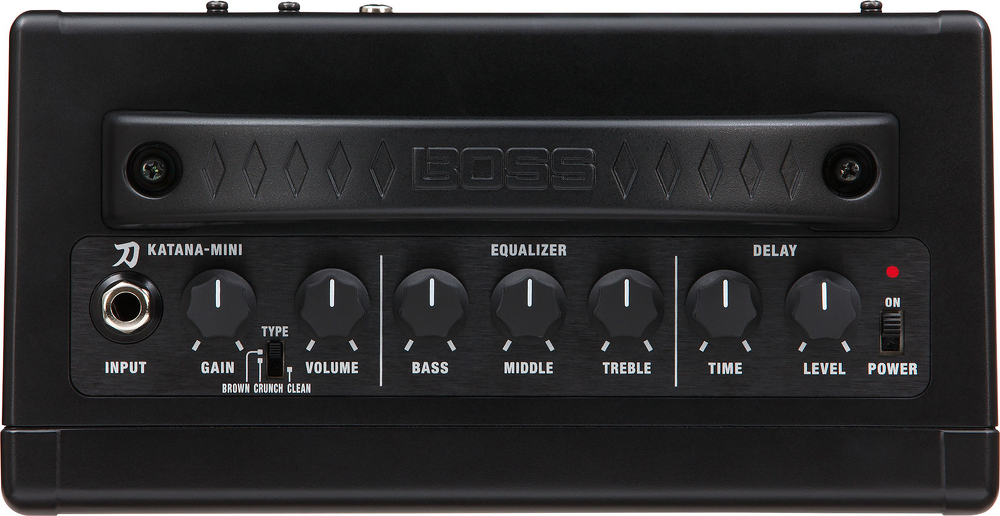

• Controls: POWER switch, TYPE switch, GAIN knob, VOLUME knob

• Equalizer Controls: BASS knob, MIDDLE knob, TREBLE knob

• Delay Controls: TIME knob, LEVEL knob

• Indicators: POWER

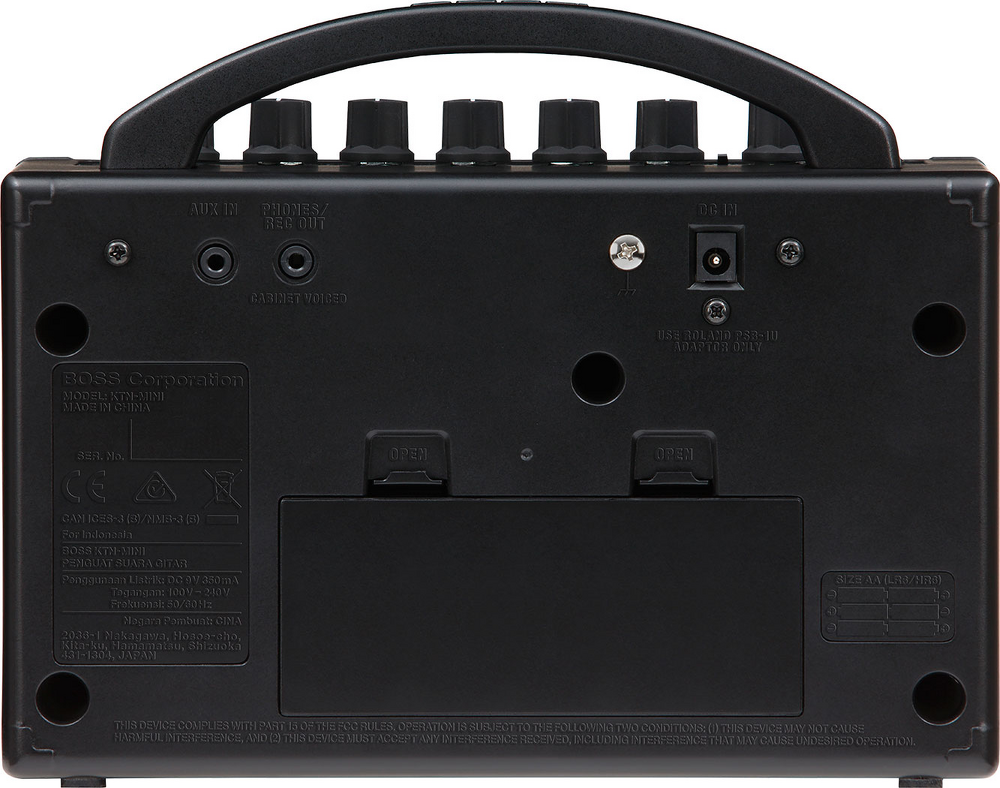

• Connectors: INPUT jack (1/4-inch phone type), AUX IN jack (stereo miniature phone type), PHONES/REC OUT jack (stereo miniature phone type), DC IN jack

• Power Supply: Alkaline battery (AA, LR6) x 6, Rechargeable Ni-MH battery (AA, HR6) x 6, or AC adaptor (sold separately)

• Current Draw: 350 mA

• Expected Battery Life (Alkaline): Approximately 7 hours continuous use

• Expected Battery Life (Ni-MH): Approximately 9 hours continuous use (with 2500 mAh batteries); varies with battery capacity and conditions of use

• Option (sold separately): AC adaptor (PSB series)

• Width: 230 mm / 9-1/16 inches

• Depth: 116 mm / 4-5/8 inches

• Height: 181 mm / 7-1/8 inches

• Weight (including battery): 1.2 kg / 2 lbs 11 oz

*Includes Owner's manual, six AA alkaline batteries (LR6)

Model# KTN-MINI
