Boss EX-4 Effects Expander Compact Multi Effects

FEATURES

• Ultra-compact effects processor that expands the capabilities of any pedalboard

• 120 premium BOSS effects, including overdrives/distortions, modulation, delays, and reverbs

• Bass-tuned effects and BOSS favorites like Slow Gear and Slicer

• Dedicated utility blocks: foot volume, two noise suppressors, send/return, and divider/mixer

• Independent global EQ for overall sound shaping

• Gear Suite feature calls up professionally tuned effect settings with the turn of a knob

• Run up to four effects at once, including multiple instances of the same effect

• Advanced series, parallel, and wet/dry routing options

• Effect loop lets you place external pedals anywhere in the chain and reorder them

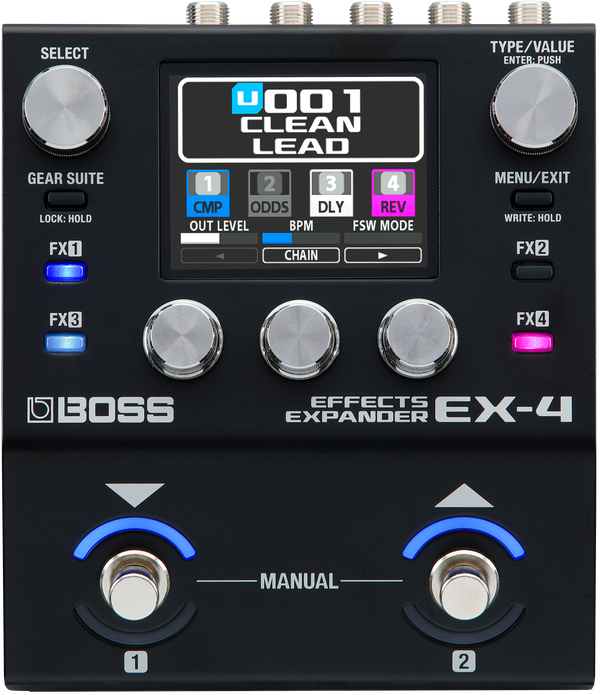

• Full-color 2.4-inch display shows the complete signal chain, effect blocks, and menus

• Dedicated FX buttons with colors matched to each effect's display color

• Dual multi-function footswitches with newly designed color LED rings

• Footswitch assignments include effect on/off, memory up/down, master bypass, and tap tempo

• Manual and Memory modes for stompbox-style or preset-based control

• 128 preset memories for guitar and bass, plus 128 user memories

• Seamless memory changes with delay and reverb carryover possible in certain configurations

• Four audio jacks for mono or stereo connectivity

• Inputs for two footswitches or an expression pedal

• Space-saving TRS MIDI in/out for integration with MIDI pedals, switchers, and clock sources

DESCRIPTION

The BOSS EX-4 Effects Expander is built for players who curate their pedalboards carefully and need every slot to earn its place. In one streamlined stompbox, it adds 120 premium BOSS effects to whatever you're already running — overdrive and distortion, modulation, delay, reverb, bass-tuned effects, and cult favorites like Slow Gear and Slicer.

Up to four effects can run at once, including multiple instances of the same effect, and you can arrange them in series, parallel, or wet/dry configurations. Dedicated utility blocks — foot volume, two noise suppressors, send/return, and divider/mixer — can be dropped anywhere in the chain, and an independent global EQ handles overall sound shaping. The built-in effect loop lets you fold external pedals into the EX-4's chain and reorder them as needed.

Getting to a usable sound is fast. The Gear Suite feature gives every effect type multiple pre-made settings with professionally tuned parameters, all reachable with the turn of a knob, and you can edit and save your own versions for instant recall. A full-color 2.4-inch display shows the whole signal chain, while dedicated FX buttons — color-matched to each effect on screen — toggle blocks with a press and open editing with a long press.

Live control comes from rugged dual-function footswitches ringed by a new color LED system, so you can always see what each switch is doing. Assignments can be set system-wide or per memory and include effect on/off, memory up/down, master bypass, and tap tempo. Manual and Memory modes cover both stompbox-style and preset-based workflows, with 128 guitar and bass presets plus 128 user memories. Around back, four audio jacks handle mono or stereo rigs (two can serve as the effect loop), with jacks for two footswitches or an expression pedal and space-saving TRS MIDI I/O for deeper integration with other pedals, switching systems, and external clocks.

SPECIFICATIONS

• Dimensions: 117 x 138 x 63 mm (4-5/8 x 5-7/16 x 2-9/16 in.)

• Weight: 800 g (1 lb. 13 oz.)

• Effects: 120 premium BOSS effects

• Simultaneous Effects: Up to 4

• Memories: 128 presets (guitar and bass) + 128 user memories

• Display: 2.4-inch full color

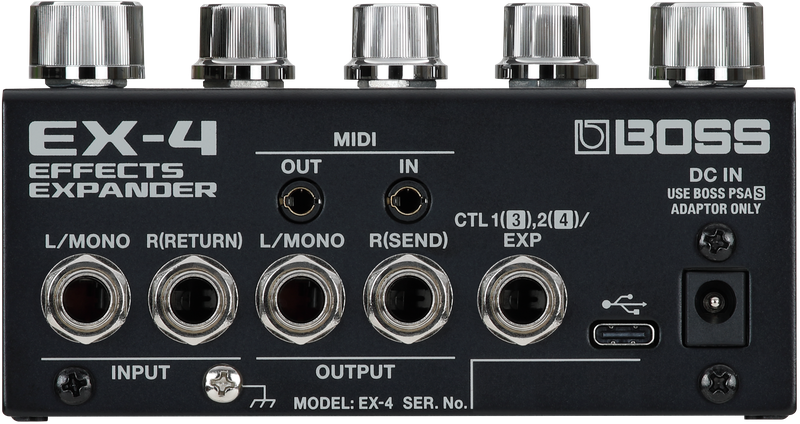

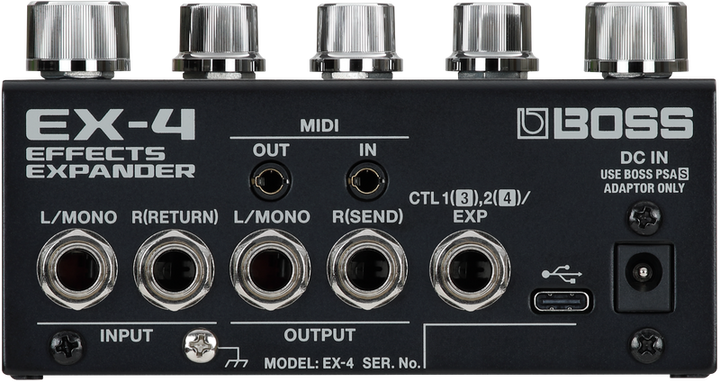

• Audio Jacks: Four (mono/stereo, two usable as effect loop)

• MIDI: TRS MIDI in/out

• Control Inputs: Two footswitches or expression pedal

• Origin: Malaysia

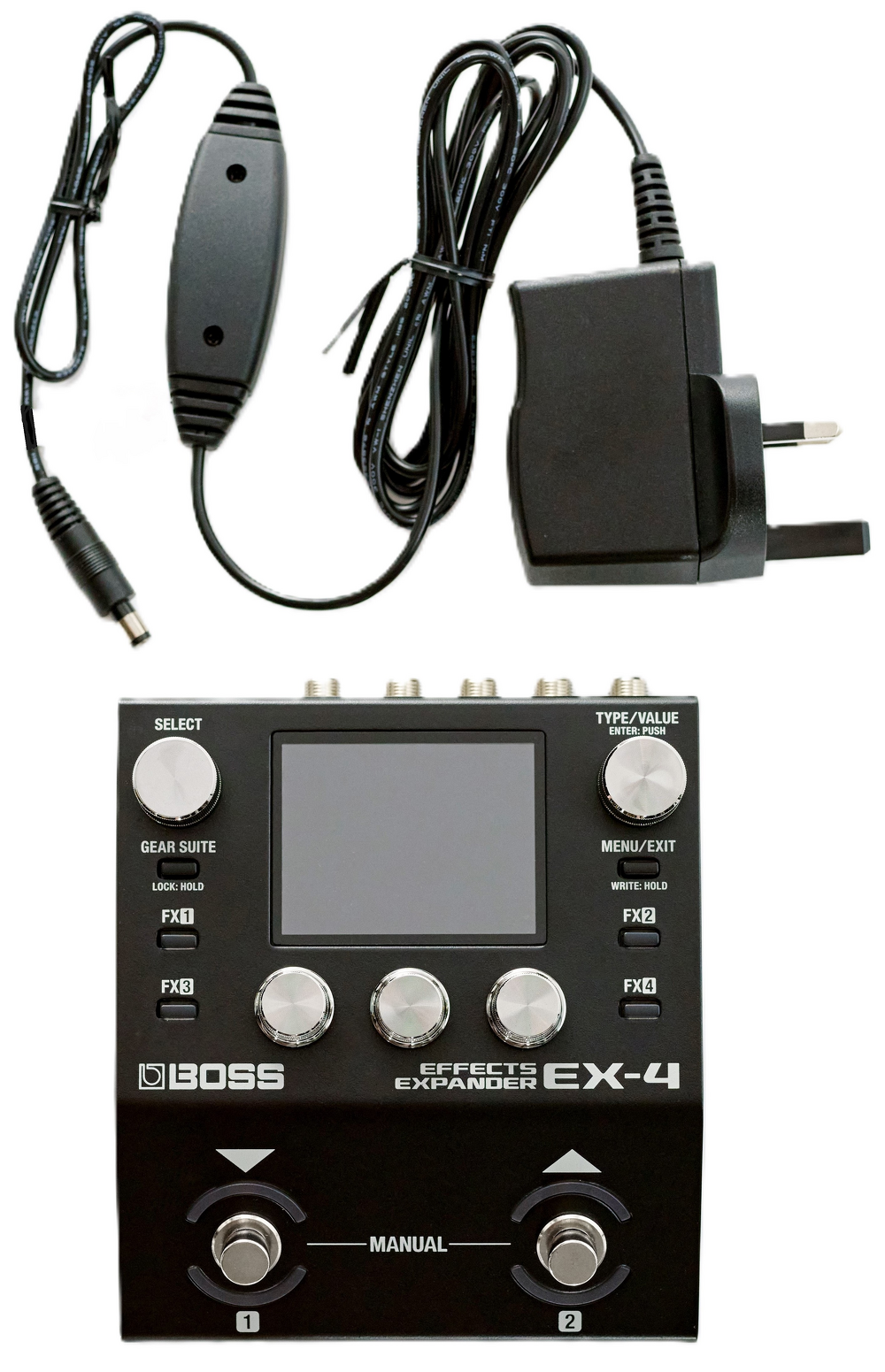

*Includes Startup Guide, "Read Me First" leaflet, PSA Series AC adaptor, 4 rubber feet

Model# EX-4
