Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Plywood enclosure with a polyurea coating for a robust, scratch resistant surface

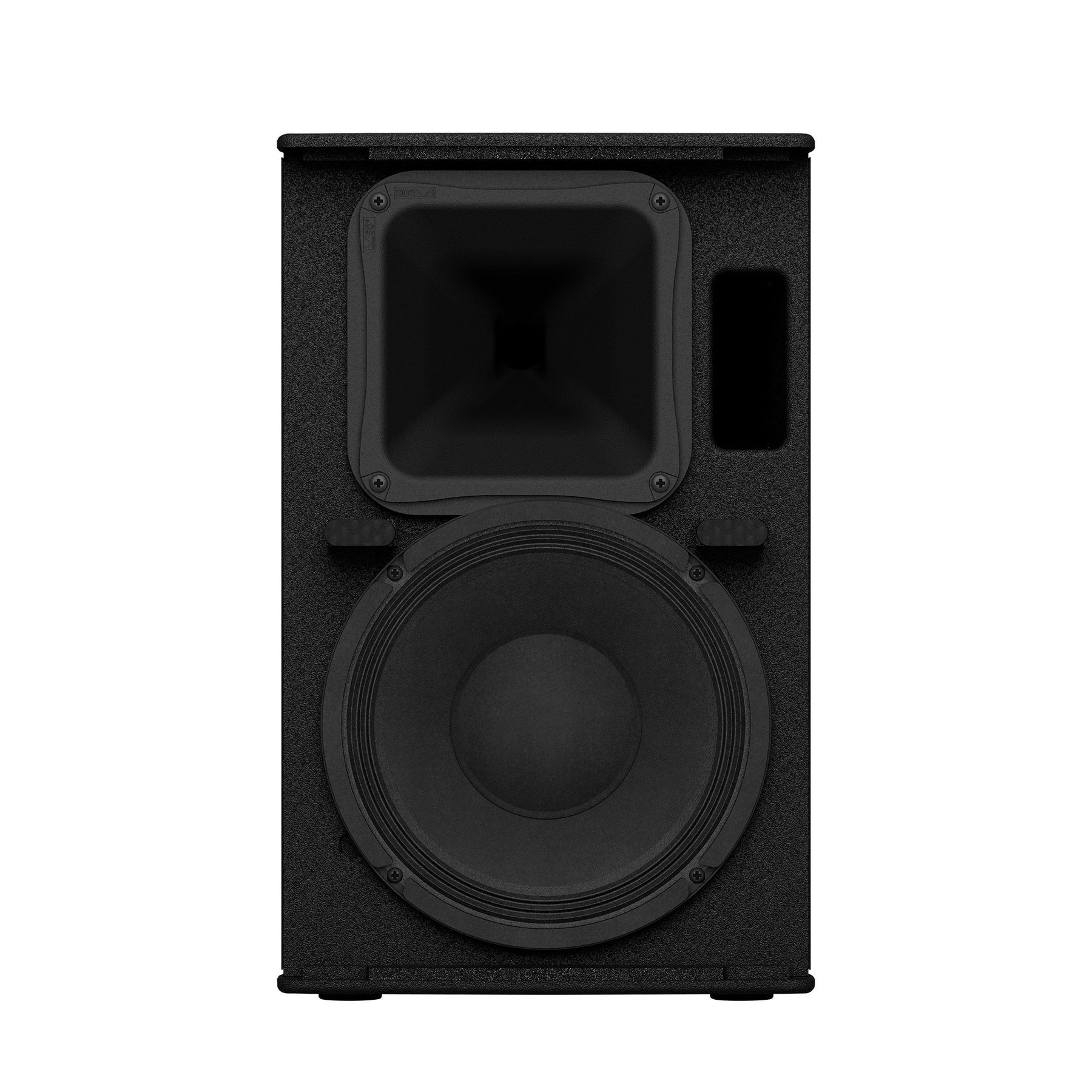

Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
A pole socket for use on a stand
Rigging points for use with eye bolts
Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
*Includes standard IEC power cable
DESCRIPTION

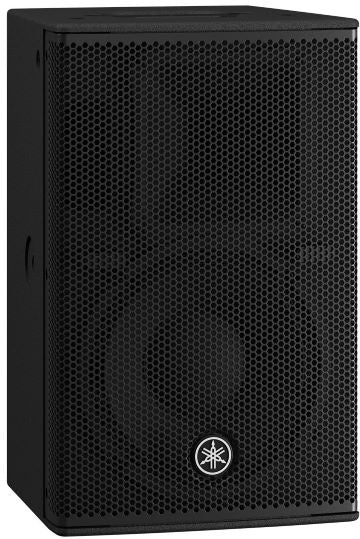

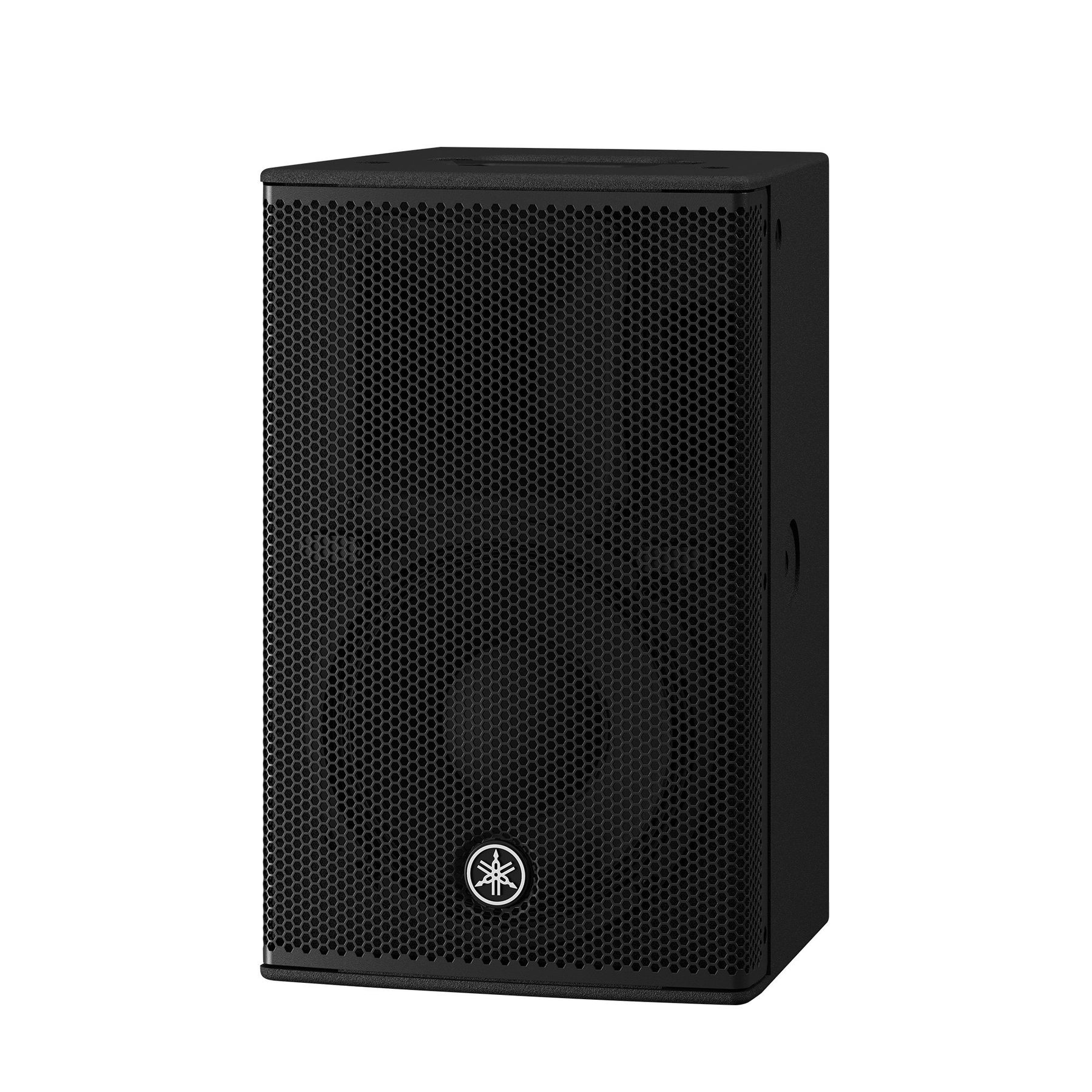

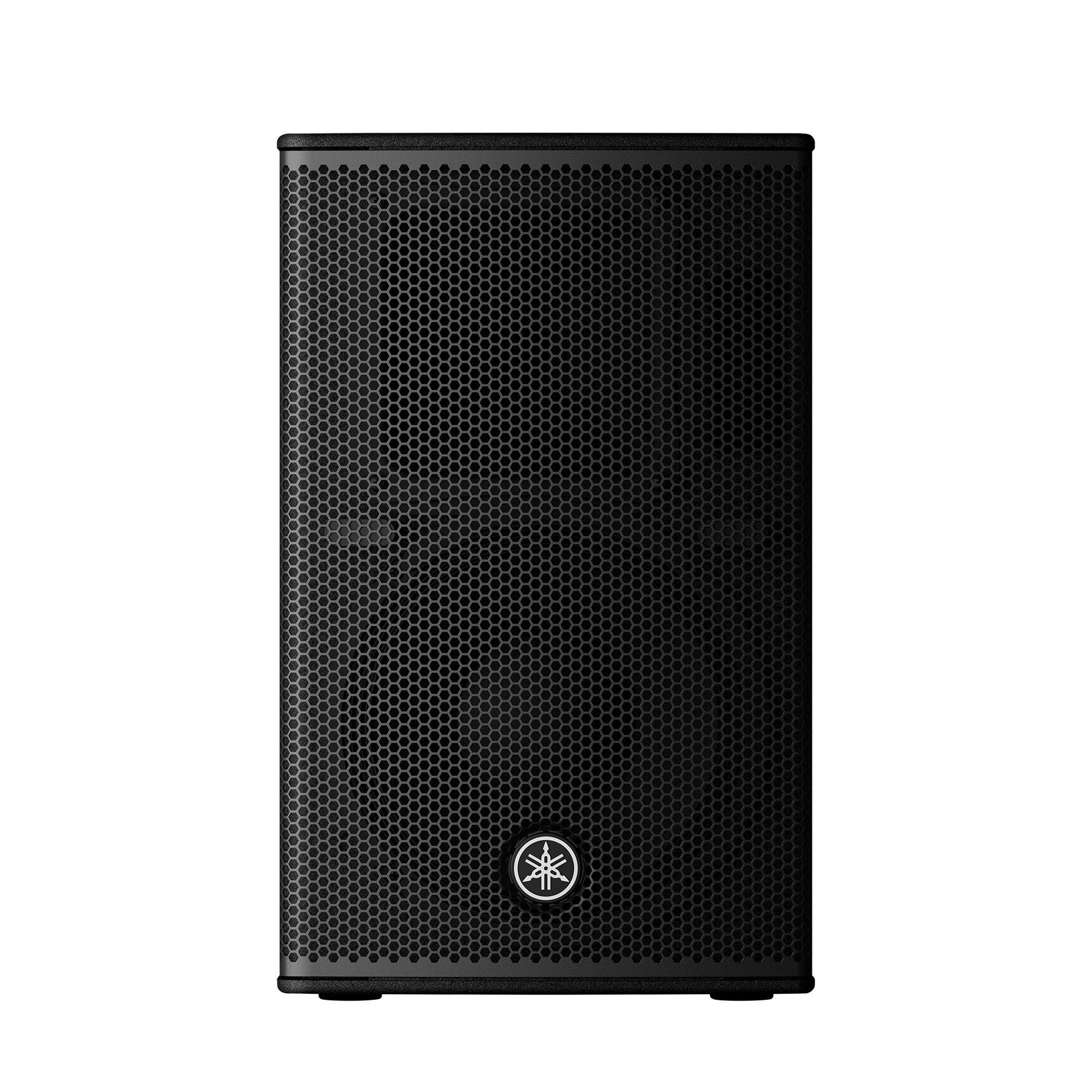

Unleash the power of the DHR10, a formidable 2-way bi-amp powered loudspeaker featuring a 10-inch woofer and a 1.4-inch HF driver!
Tailored for fixed installations, this speaker boasts a potent 700W amplifier module seamlessly integrated with high-performance DSP. Crafted with the premium-grade plywood synonymous with Yamaha's elite DZR Series, the DHR10 sets the standard for unparalleled sound quality and robust durability.
Elevate your audio experience with the cutting-edge technology and construction of the Yamaha DHR10 loudspeaker.
SPECIFICATIONS
Powered: Yes
Power Configuration: Bi-amped
LF Driver Size: 10" woofer
HF Driver Size: 1" Compression Driver
Total Power: 700W Class D

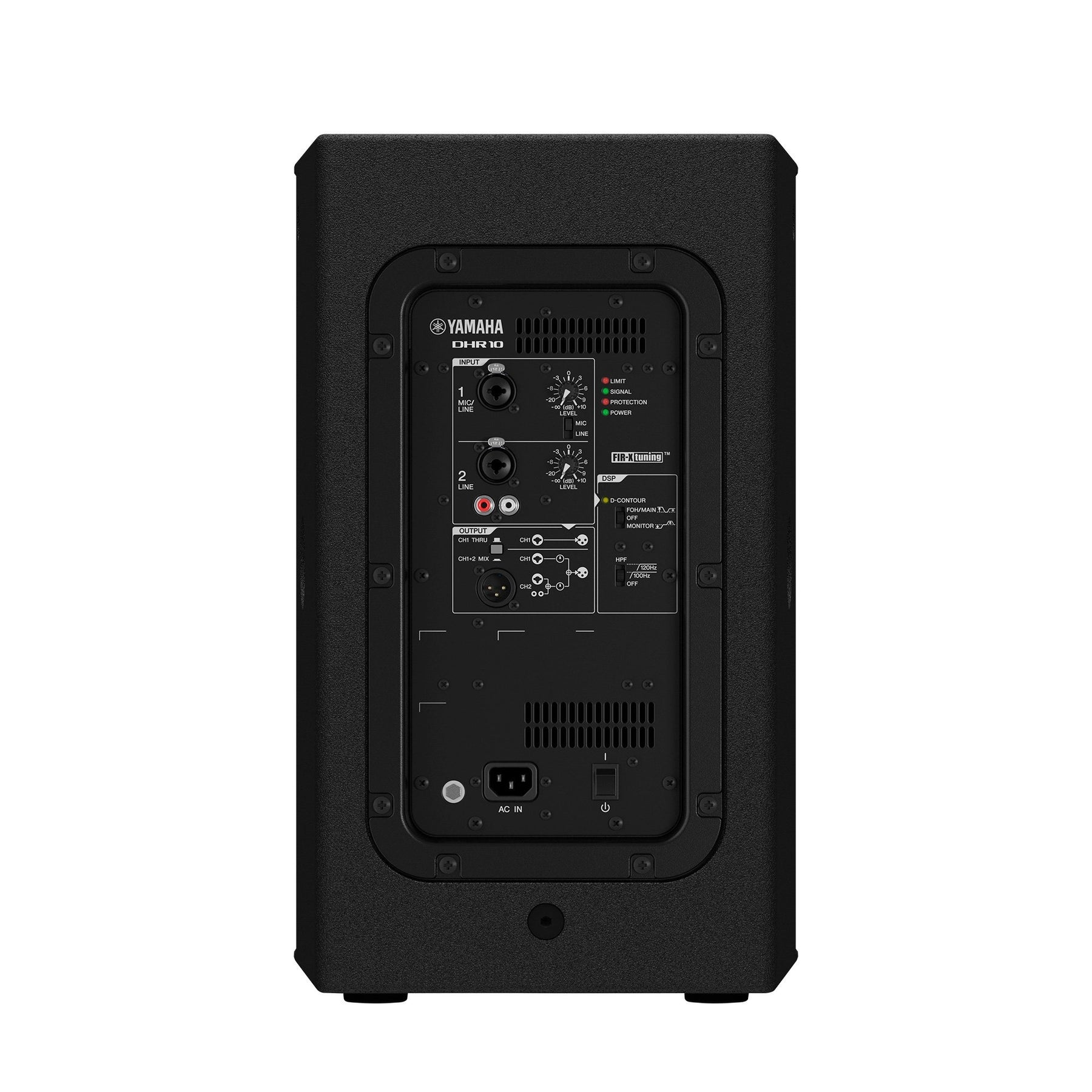

Inputs: 2 x XLR-1/4" combo
Outputs: 1 x XLR
Frequency Response: 52Hz-20kHz
Maximum Peak SPL: 128 dB SPL @ 1m
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 60°
Signal Processing: 48-bit DSP
Enclosure Material: Plywood with Black Polyurea coating
