FEATURES
- Switchable voltage between 115 and 230/240V (50 to 60Hz)
- Heavy-duty all metal enclosure with slotted vents for heat dissipation
- USB-C gooseneck LED light illuminates pedal board in dark settings
- On/off power switch with LED indicator light
DESCRIPTION
Power a wide range of stompboxes with this Pedal Board Power Supply with 12 Isolated Outputs from Gator Cases.
The power supply consists of two 18V outputs, three 9/12V outputs, four 9V outputs (two at 300mA and two at 500mA), two 4-9V outputs with continuously adjustable voltage for power-starve effects, and a 10W USB-C. There's an AC pass-through outlet, and the power supply can be switched between 115V and 230/240V for international use. The all-metal 9.9 x 4.5 x 2" housing has heat-vent slots, and a gooseneck LED light lets you see your pedals on dark stages.
This power supply comes with a full set of cables.
SPECIFICATIONS
- Guitar Effects Pedal Power Supply with 12 Isolated Outputs

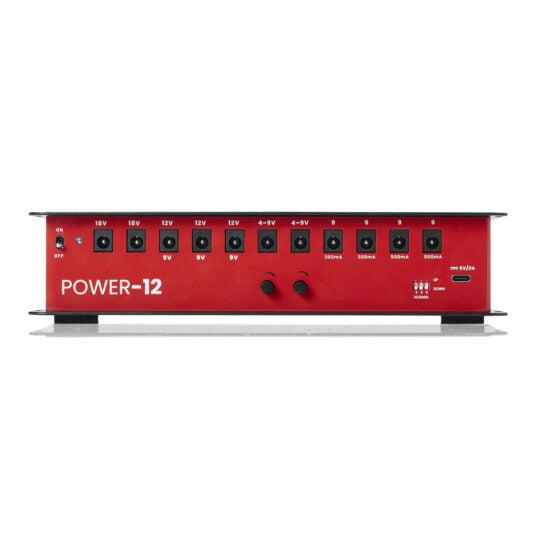

- Outputs: 2 x 18V DC @ 120mA, 3 x 9/12V DC @ 120mA, 2 x 4~9V DC @ 120mA, 2 x 9V DC @ 300mA, 2 x 9V DC @ 500mA, 1 x USB @ 5V/2A (10W), 1 x AC Outlet
- Maximum Output Current: 2300m
- AUSB Gooseneck LED Light Illuminates Pedalboard in Dark Settings

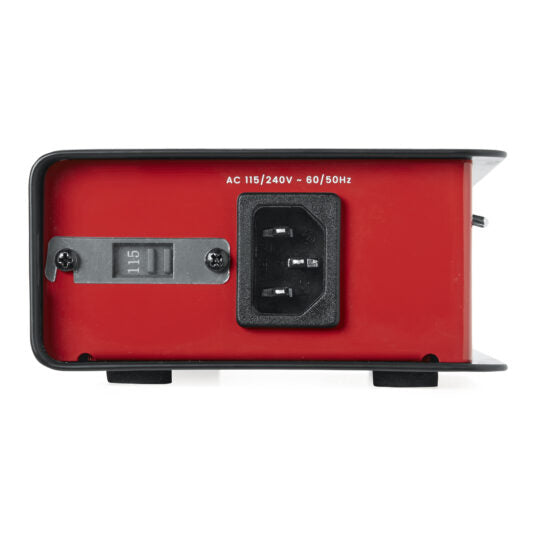

- AC Power Input with Switchable Voltage Between 115V/230V (50Hz-60Hz) for International Use

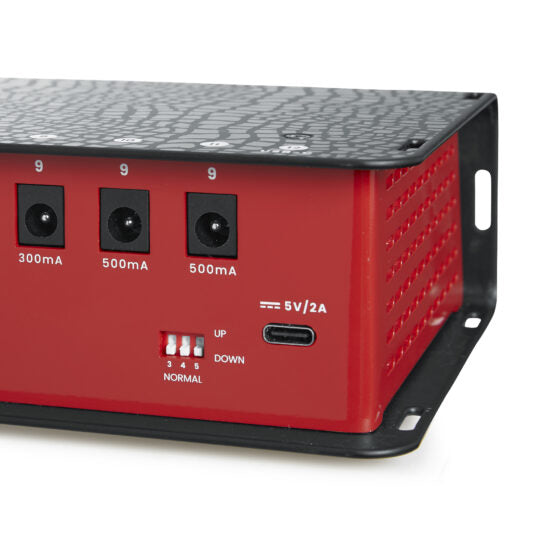

- Voltage Adjustable on Outputs 3, 4 & 5 via DIP Switches
- Continuously Variable Voltage (4v ~ 9v) on Two (2) Outputs to Simulate Low Battery Effects

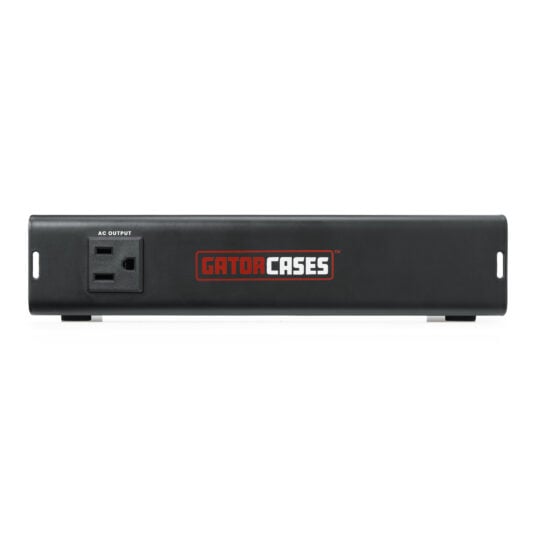

- AC Outlet on Rear SideIntegrated Slots Allow for Direct Mounting to Pedal Board
- On/Off Power Switch with LED Indicator LightHeavy-Duty All Metal Enclosure with Slotted Vents for Heat Dissipation
- Product Dimensions: 9.88”/251mm (L) x 4.5”/114mm (W) x 2”/51mm (H). Net Weight: 3.8 lbs./1.72 kg

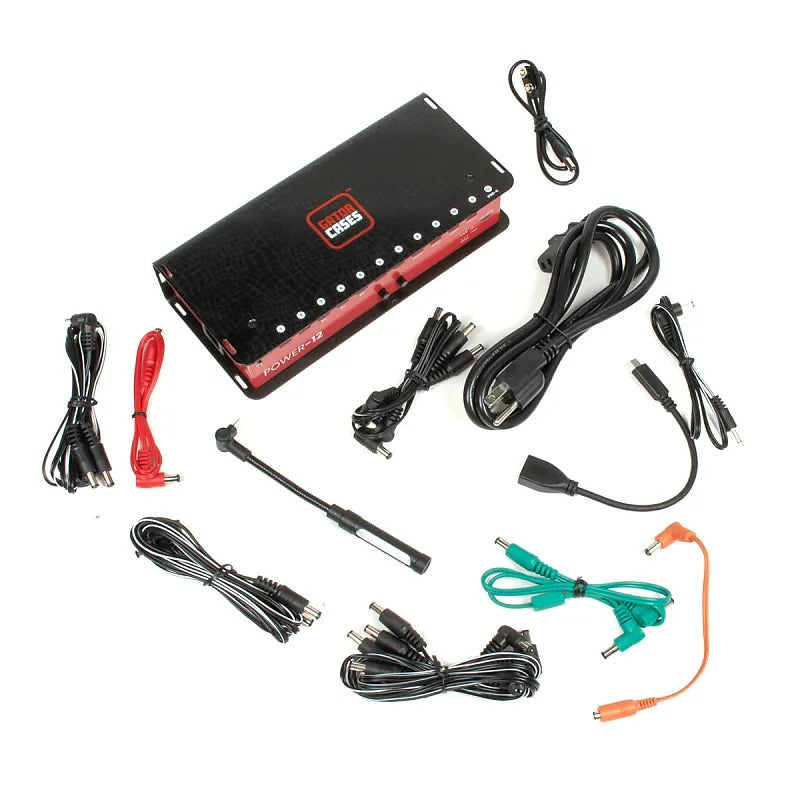

- Includes 1 x IEC power cable, 12 x DC power cables, 1 x 9V battery clip cable, 1 x mini jack cable, 1 x USB-C male to USB-A female adapter cable, 1 x current doubler cable, and 1 x polarity inverter cable
