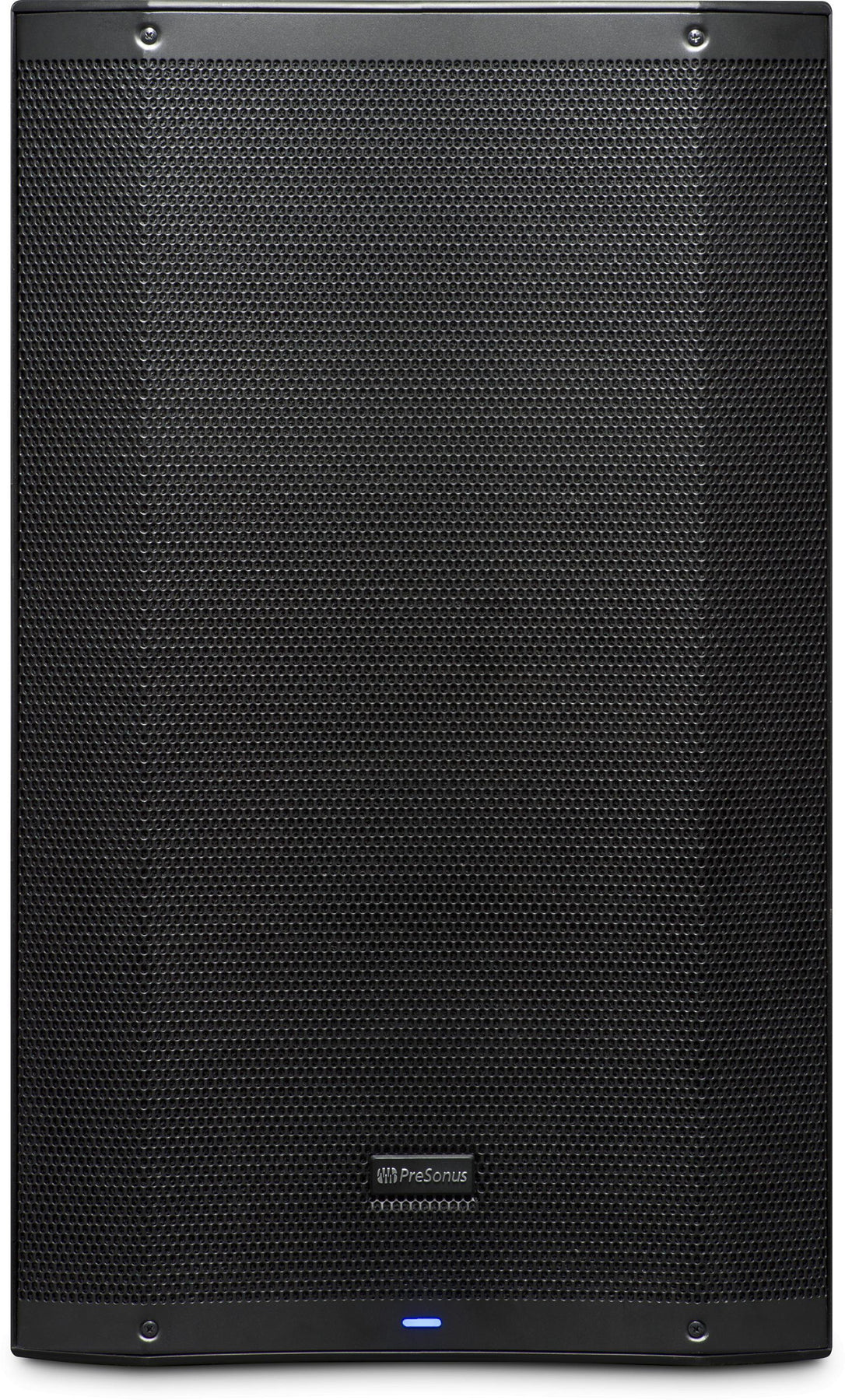

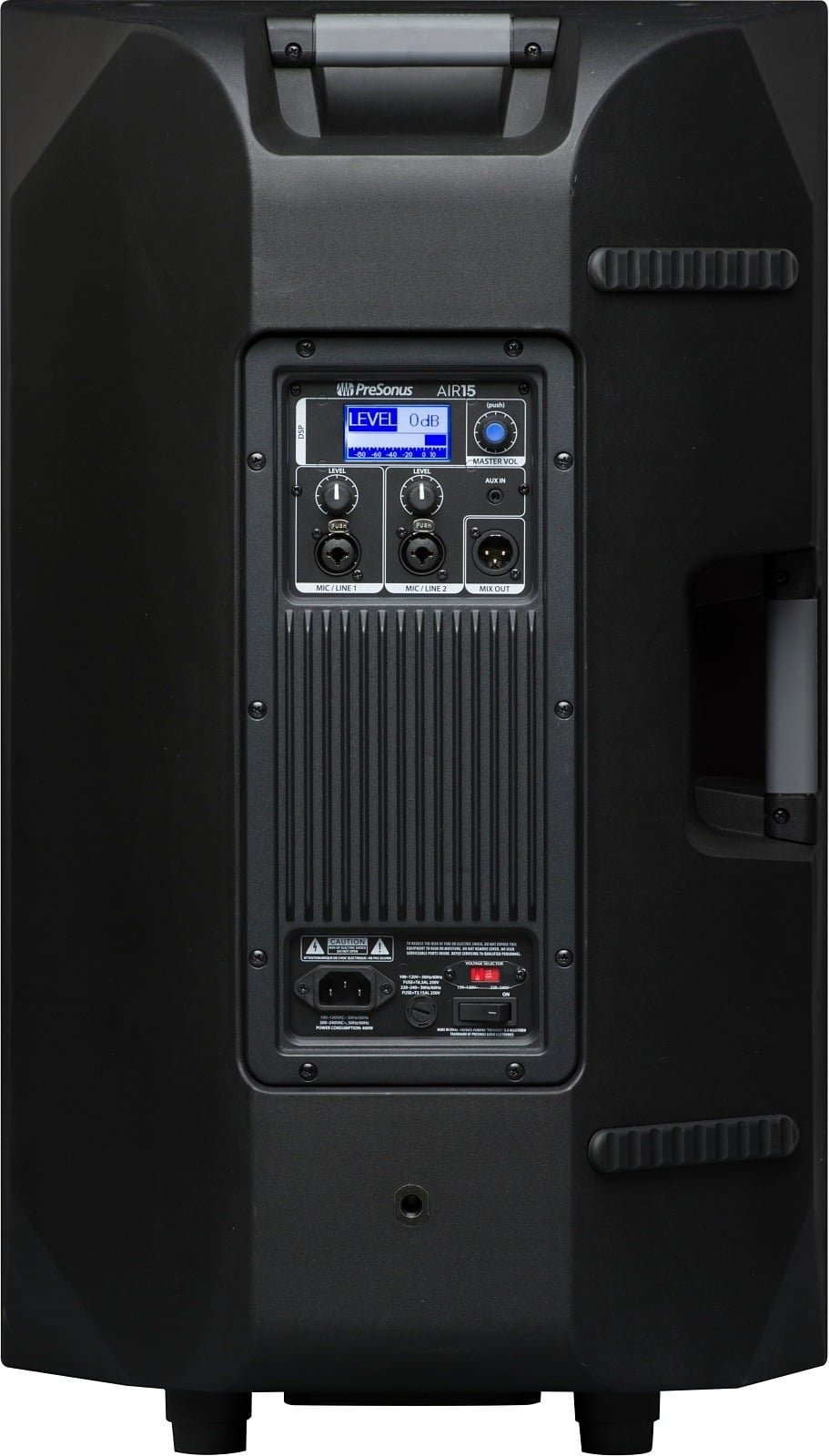

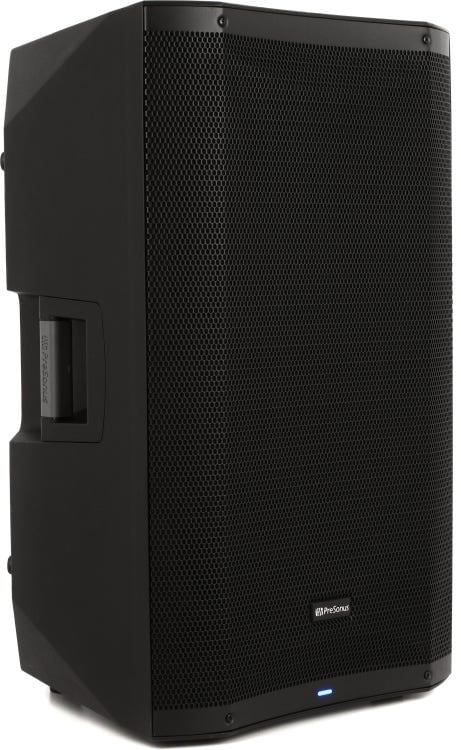

PreSonus AIR15 1200W 15-inch Powered Speaker

FEATURES

• 1.35-inch, high-frequency compression driver and 15-inch woofer with a 2.5-inch voice coil
• 900W (peak) Class D power amplifier for LF driver and 300W (peak) Class A/B amplifier for HF driver
• Maximum SPL 124 dB peak with 47 Hz to 20 kHz frequency response
• 90° x 60° (horizontal x vertical) dispersion pattern

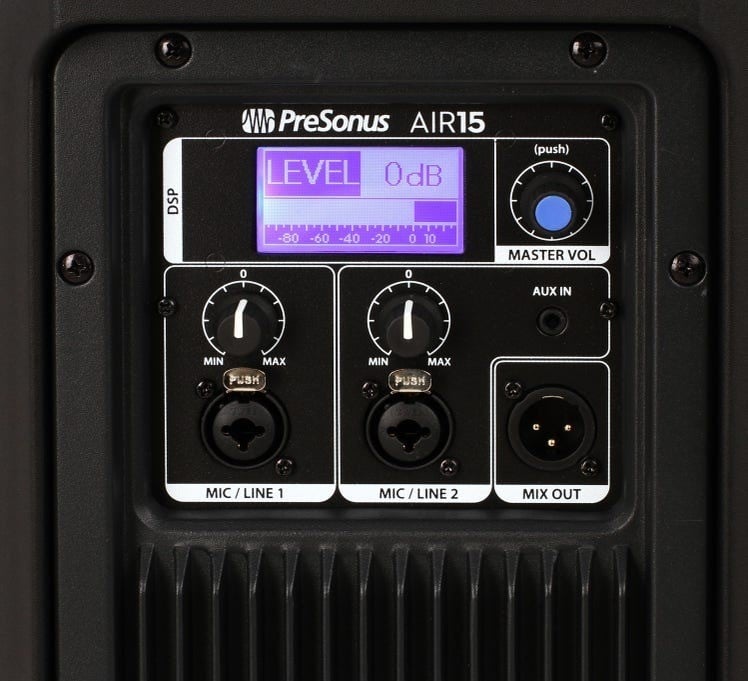

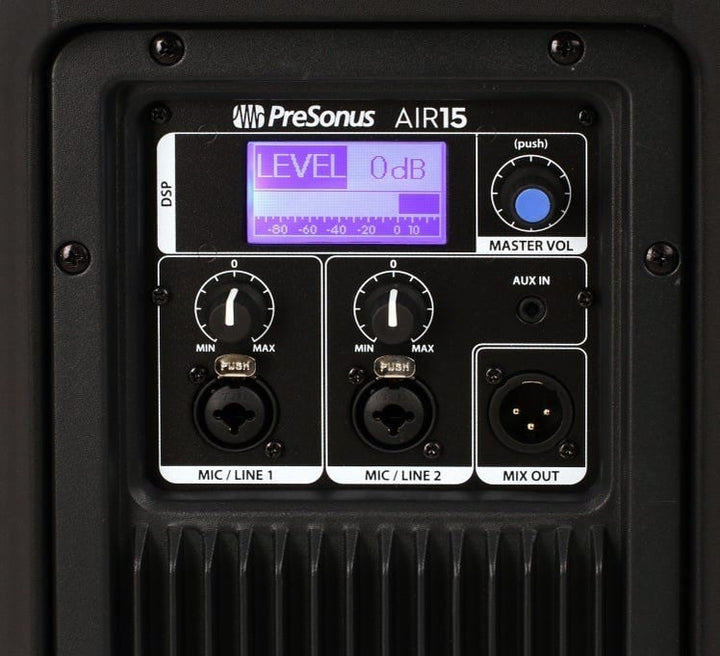

• Onboard mixer with two combo XLR and ¼-inch inputs and one summed balanced output
• Easy-to-use DSP performance presets: DJ (music playback), FOH (normal front-of-house), Monitor (floor wedge), Speech (intelligibility)
• Additional presets and controls: Stand (pole or tripod mounting), Bracket (wall mounting), Suspend (flown applications)

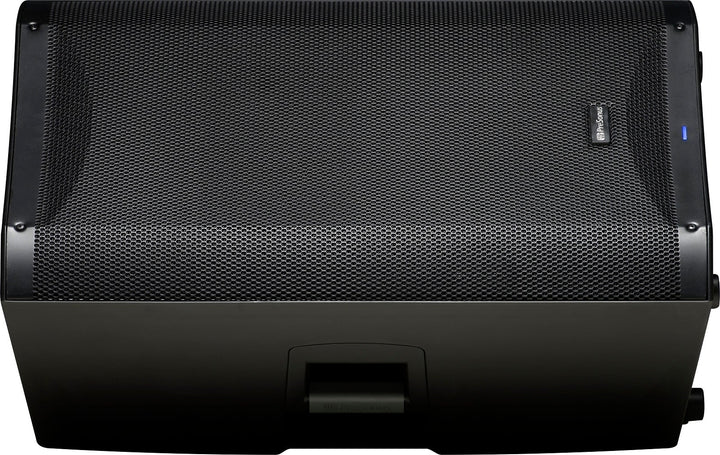

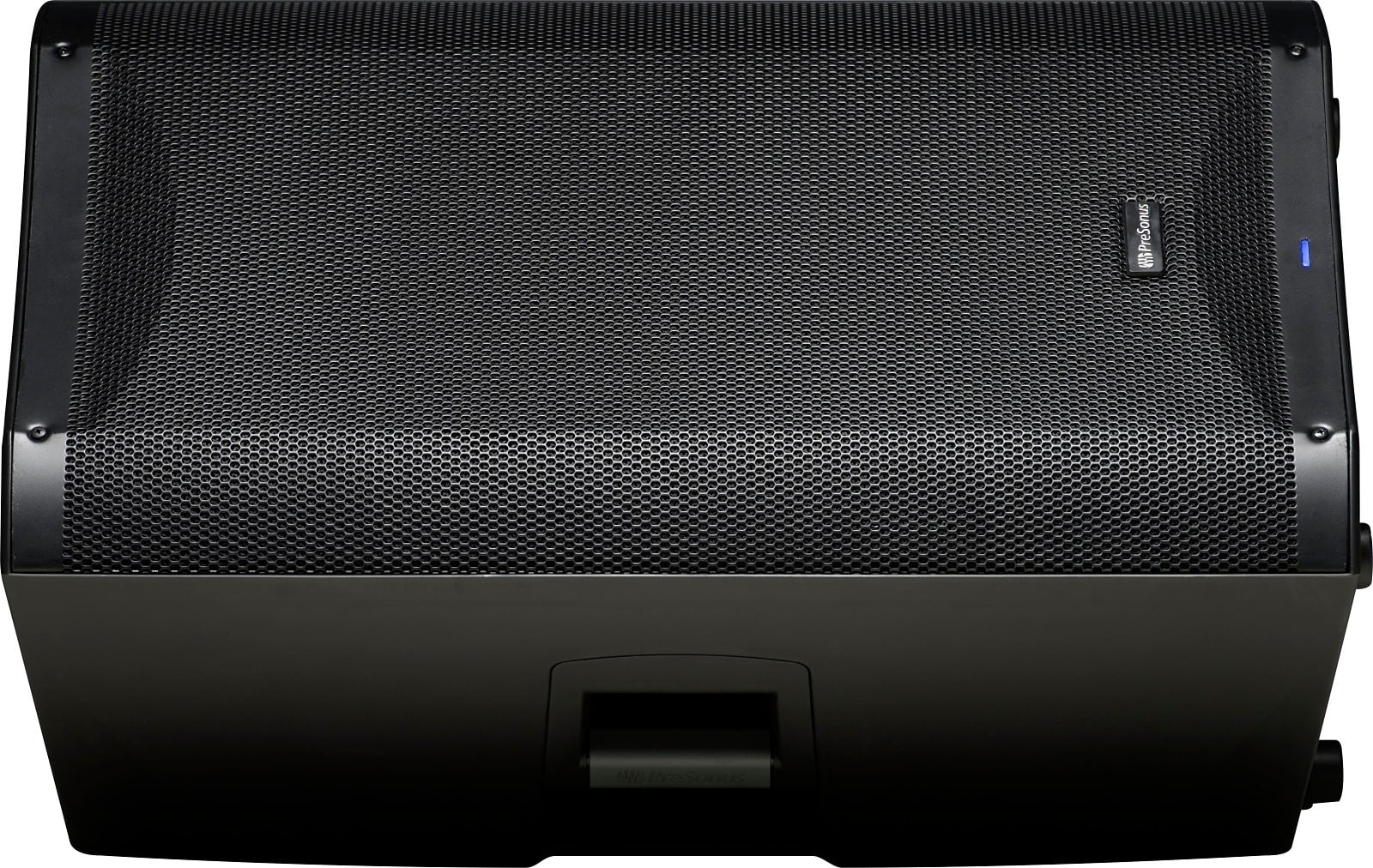

• Rugged, plastic, multi-angle enclosure for mains or monitor-wedge applications, with comfortable ergonomic handle and tour-grade, 1.2 mm steel grille
• 35 mm pole socket with 7.5˚ downward tilt
• M10 rigging points for suspended installation

*Includes standard IEC power cable

---

DESCRIPTION

Compact and lightweight, AIR15 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car.

Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR15 gives you all the power and tools you need for both mobile and installed sound.

---

• Powered: Yes
• Power Configuration: Bi-amped
• LF Driver Size: 15" Woofer
• HF Driver Size: 1.35" Compression Driver
• LF Driver Power Amp: 500W Continuous, 900W Peak Class D
• HF Driver Power Amp: 200W Continuous, 300W Peak Class A/B
• Total Power: 1200W Peak
• Inputs: 2 x XLR-1/4" combo, 1 x 1/8" (aux in)
• Outputs: 1 x XLR (mix out)
• Frequency Range: 40Hz-20khz (-10 dB)
• Maximum Peak SPL: 124 dB SPL
• Horizontal Coverage Angle: 90 Degrees
• Vertical Coverage Angle: 60 Degrees
• Signal Processing: EQ (HF, LF), Performance Presets (DJ, FOH, Monitor, Speech, Enhance)
• Enclosure Material: Rugged Molded Plastic
• Mounting Options: Pole Mount with 1.37" socket, 3 x M10 Fly Points, Wall Mount (optional bracket)
• Power Source: Standard IEC AC cable
• Height: 28.3"
• Width: 16.9"
• Depth: 15.8"
• Weight: 46.3lbs

*Includes standard IEC power cable
