FEATURES
- New Cabinet Design
- Lightweight and Portable
- 3 Channel Mixer
- 50 watts
*Includes standard IEC power cable
DESCRIPTION

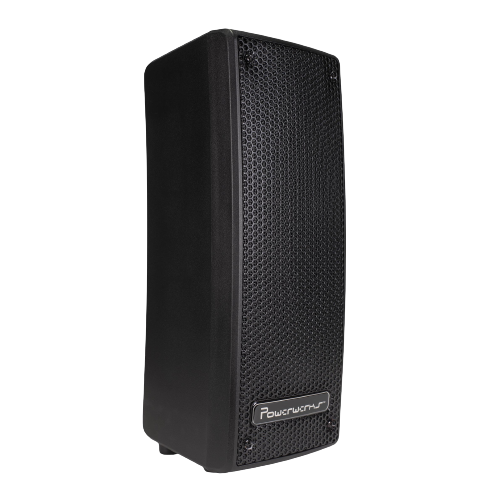

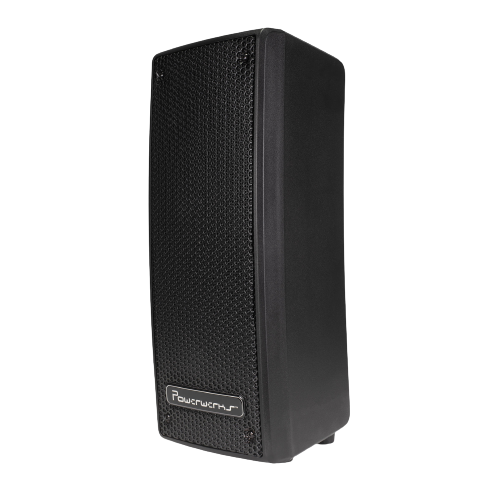

The PW50 PA System combines quality, performance and convenient features, all in a highly portable package.
You’ll find that the PW50 works well in a wide variety of environments, amplifying vocals, instruments, keyboards, drum machines, audio devices and more. The two “5” speakers and high- frequency driver provide just the right combination of high and mid-range sounds. This balance ensures your vocals cut through the mix while minimizing harsh and unwanted frequencies.

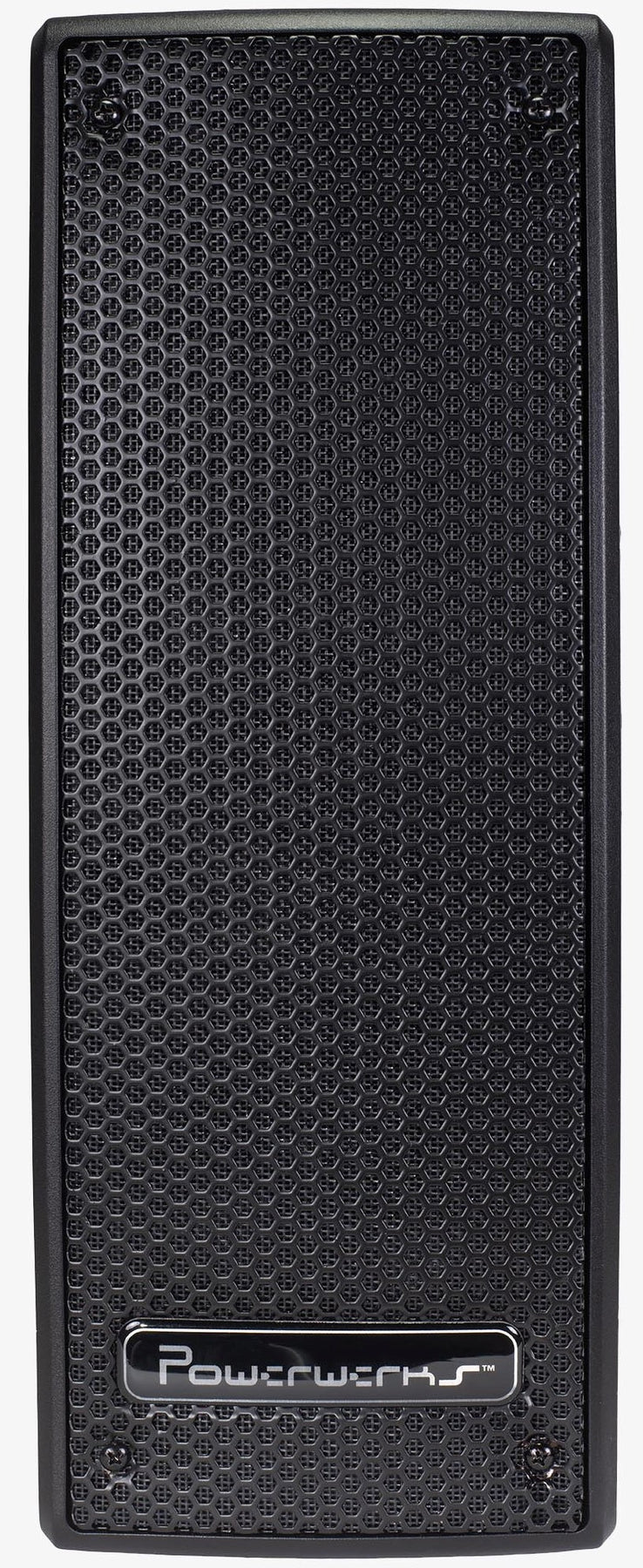

The PW50 construction is based on the same tried-and-true techniques as the rest of our speaker lines. This includes a heavy-duty steel grill. This model also utilizes a high frequency driver for crisp, accurate reproduction of treble frequency and articulate speech. For the soloist or acoustic duo, the PW50 works well when positioned on a standard speaker stand. The Powerlink circuit allows two or more units to be linked together and functions as one PA system.
As your following grows, so does your sound system. Multiple units can be connected to increase the sound coverage in your venue of choice.
SPECIFICATIONS
-
Output Power: 50 Watts
-

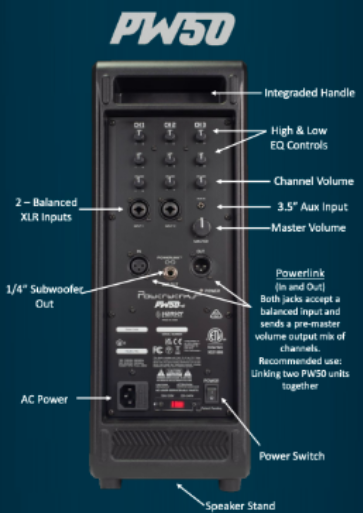

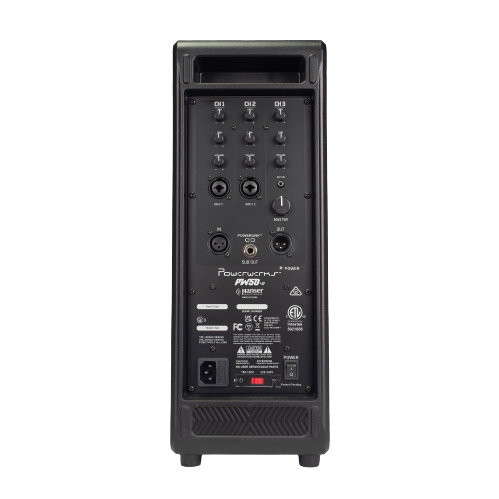

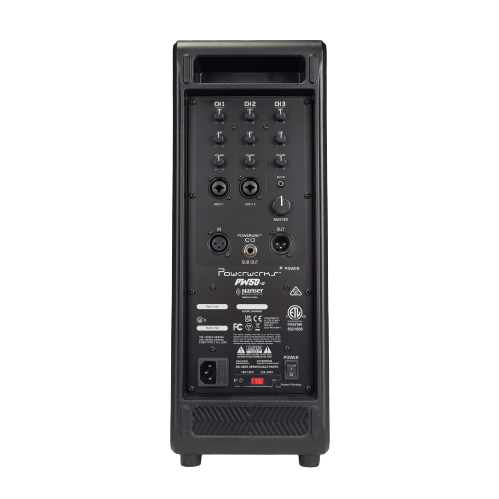

Accepted Inputs (Channel 1-2): Mic XLR balanced, line leve 1/4" unbalanced
-
Accepted Inputs (Channel 3): 1/8" headphone/line level stereo, mixed mono
-
Frequency Response: 20HZ - 20kHz
-
Hum: -65db
-
Noise: -48db
-
System Gain:
- +70dB Mic to speaker output (channel 1-2)
- +56dB Line to speaker output (channel 1-2)
- +42dB AUX IN to speaker output
-
Channel EQ: 4kHz and above, 800Hz and below
-
PowerLink (In/Out): Yes. Ability to link two PW50's
-
Subwoofer Out: Line out. 20Hz-150Hz
-
Phantom Power: +15V. Mic inputs (Channel 1-2)
-
Power Requirements: USA 120V
-

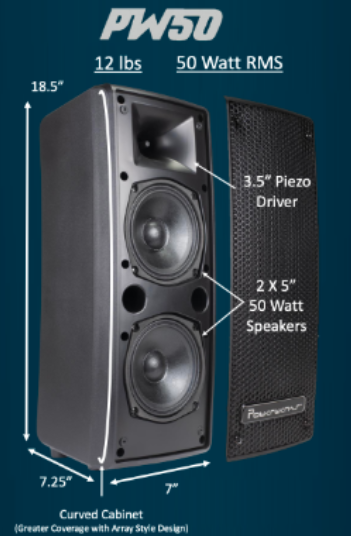

Speakers: x2 5". 50W @ 4ohms each
-
Horn: 3 1/2" Piezo driver
-
Dimensions: 7.5"W x 18"H x 6.5"D
-
Weight: 14.7lb
*Includes standard IEC power cable
