CAD STAGE7 Drum Microphone Package - With Carrying Case

FEATURES

• 7-Piece Drum Microphone Pack
• D10 Cardioid Dynamic Kick Microphone
• D19 Snare Drum Microphone
• 3 x D29 Tom Microphones
• 2 x C9 Overhead Microphones
• Integrated Clips

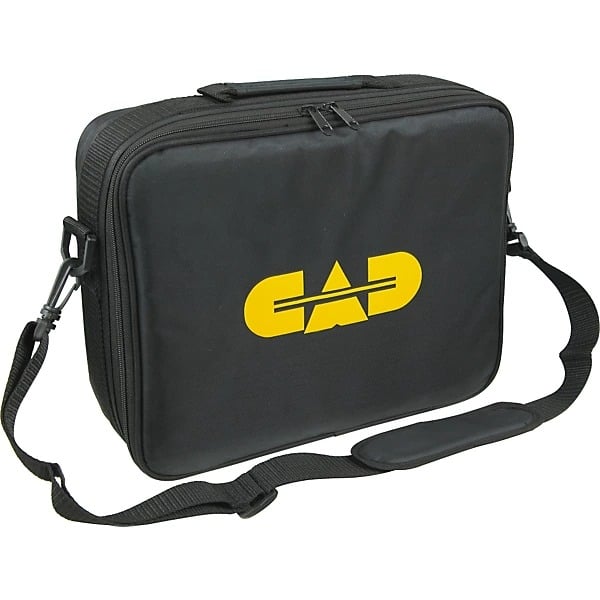

*Includes CAD padded carrying case

---

DESCRIPTION

The CAD Stage7 Drum Microphone Pack is an affordable 7-piece drum microphone package well suited for performing, rehearsing, and project recording.

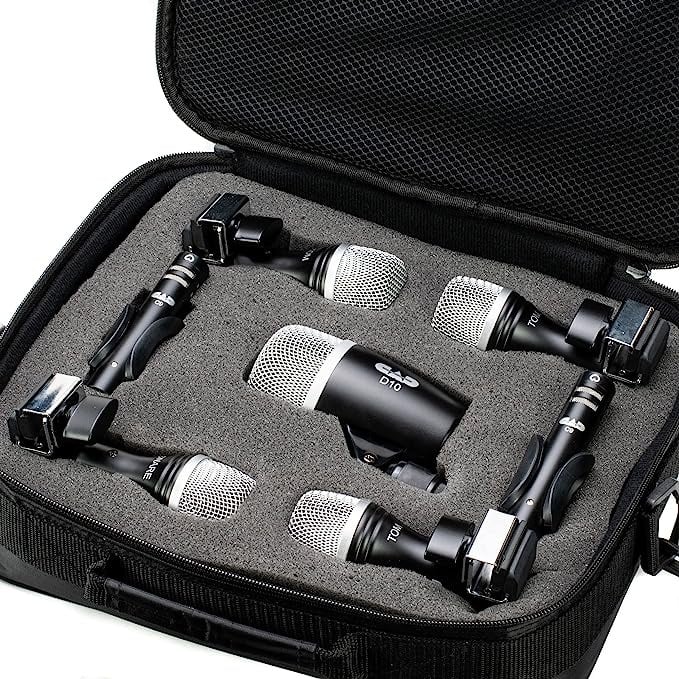

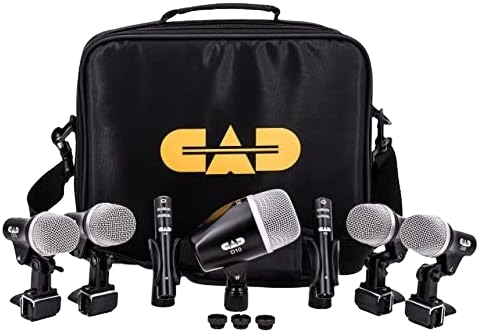

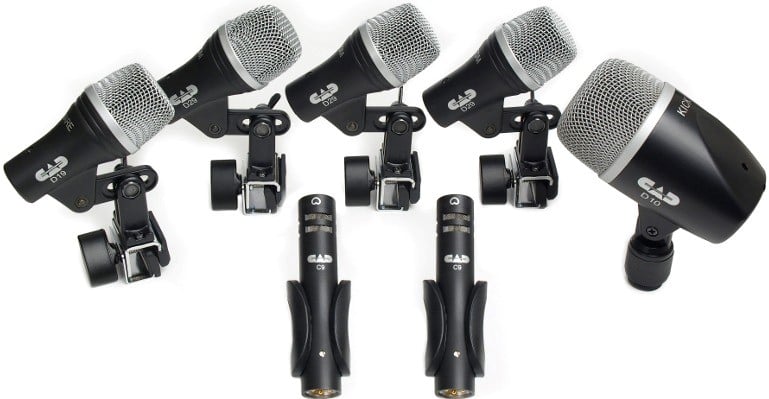

The Stage7 consists of the D10 dynamic kick drum microphone, 3 x D29 tom microphones, a D19 snare drum mic, and 2 x C9 overhead microphones. All the microphones include mounting hardware and a vinyl carrying case for transport and storage.

---

SPECIFICATIONS

C9 Cardioid Condenser Instrument Microphone:

• ​Operating Principle: Condenser
• Polar Pattern: Cardioid
• Frequency Response: 40Hz -13KHz
• Sensitivity: (2.2mV) @ 1 Pa
• Impedance: 150 ohms
• Max SPL: 140dB
• Self Noise: 27dBA
• Power Requirements: P12, P24, P48, 2.2mA
• Weight: 1.12oz [32g]
• RF Immunity: Meets or exceeds EN55103-2, E1-E4
• RoHS: Compliant

D29 Cardioid Dynamic Percussion Microphone:

• Operating Principle: Moving-coil dynamic
• Polar Pattern: Cardioid
• Frequency Response: 90Hz -13KHz
• Sensitivity: -53dBV (2.2mV) @ 1 Pa 90
• Impedance: 560 ohms
• Weight: 6.5oz [0.19Kg]
• RF Immunity: Meets or exceeds
• EN55103-2, E1-E4
• RoHS: Compliant

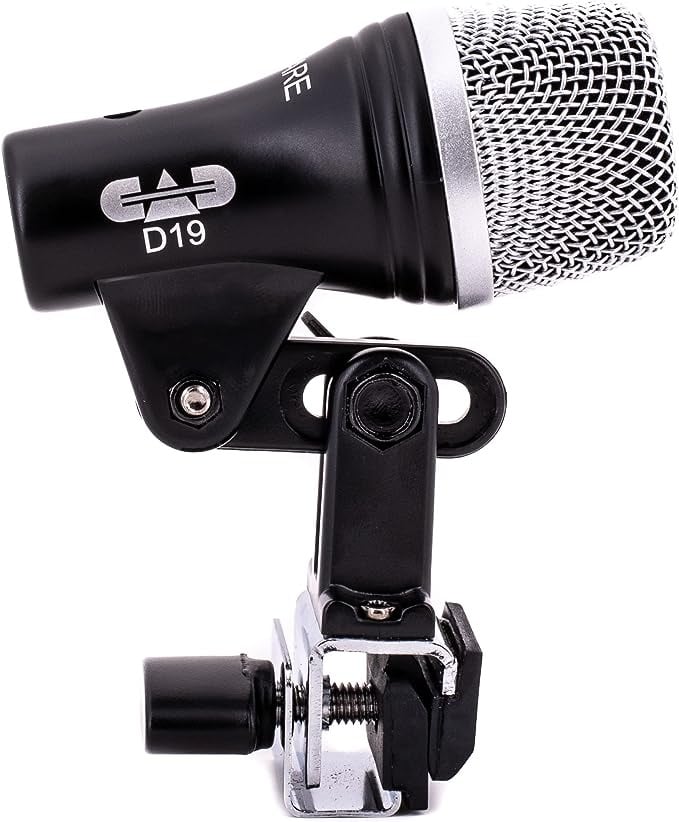

D19 Supercardioid Dynamic Percussion Microphone:

• Operating Principle: Moving-coil dynamic
• Polar Pattern: Supercardioid
• Frequency Response: 90Hz -14KHz, -6dB
• Sensitivity: -56dBV (1.6mV) @ 1 Pa 9
• Impedance: 300 ohms
• Weight: 6.5oz [0.19Kg]
• RF Immunity: Meets or exceeds
• EN55103-2, E1-E4
• RoHS: Compliant

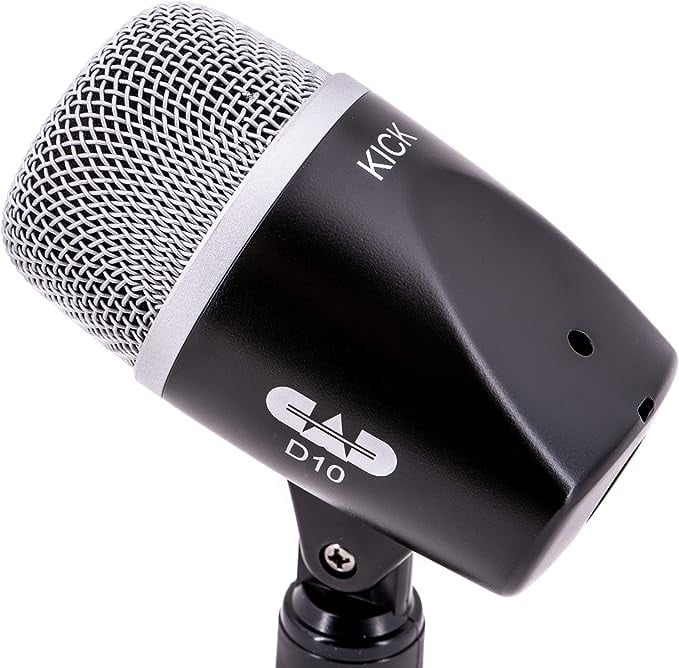

D10 Cardioid Dynamic Kick Drum Microphone:

• Operating Principle: Moving-coil dynamic
• Polar Pattern: Cardioid
• Frequency Response: 50Hz -16KHz
• Sensitivity: 67dBV (0.45mV) @ 1 Pa 90
• Impedance: 60 ohms
• Weight: 12.75oz [0.36Kg]
• RF Immunity: Meets or exceeds
• EN55103-2, E1-E4
• RoHS: Compliant

*Includes CAD padded carrying case
