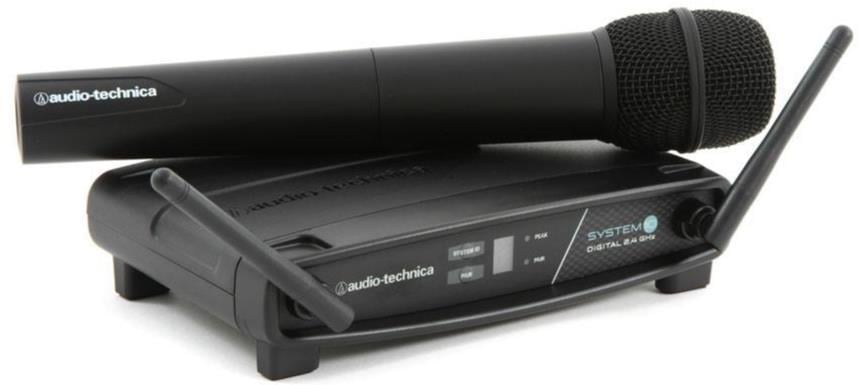

Audio Technica System 10 Digital Handheld Mic Wireless System
- In stock, ready to ship
- Backordered, shipping soon
The Audio-Technica System 10 gives performing musicians and presenters advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.
System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication.
Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
Features
- Affordable digital wireless unit
- Includes an Audio-Technica ATW-T1002 handheld dynamic unidirectional microphone/transmitter
- Clear sound quality and rock-solid, dependable performance
- Advanced 24-bit operation in the 2.4GHz range
- Automatic frequency scanning finds an open channel at the touch of a button
- True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
- Up to 8 units can be used together simultaneously
- Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
- Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
Specifications: Overall System
- Operating Frequencies: 2.4 GHz ISM band
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Range: 30 m (100') typical
- Open range environment with no interfering signals
- Operating Temperature Range: 0 C to +40 C (32 F to 104 F) Battery performance may be reduced at very low temperatures
- Frequency Response: 20 Hz to 20 kHz Depending on microphone type
Specifications: Receiver
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
- Dimensions (WxHxD): 190.0 x 46.2 x 128.5mm; 7.48 x 1.82 x 5.06"
- Net Weight: 290 grams (10.2 oz)
- Accessory Included: Power supply
