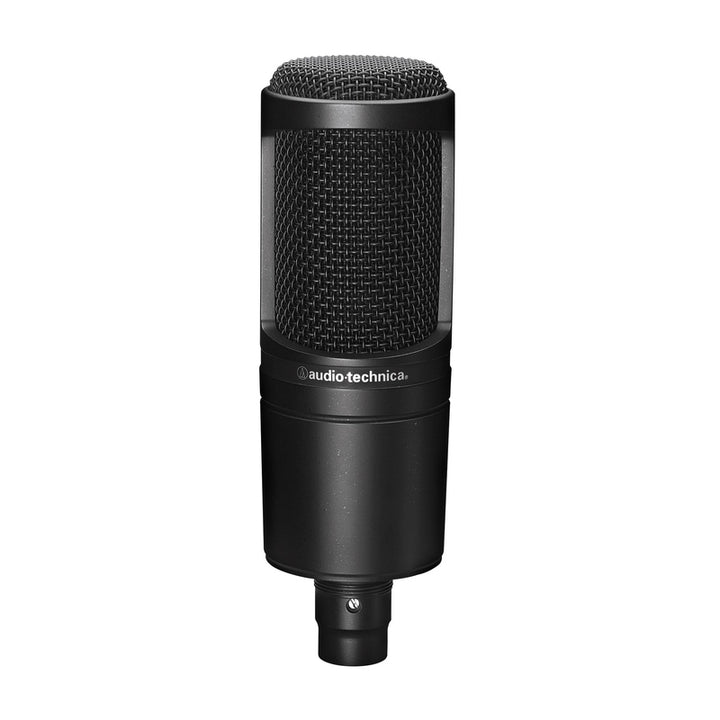

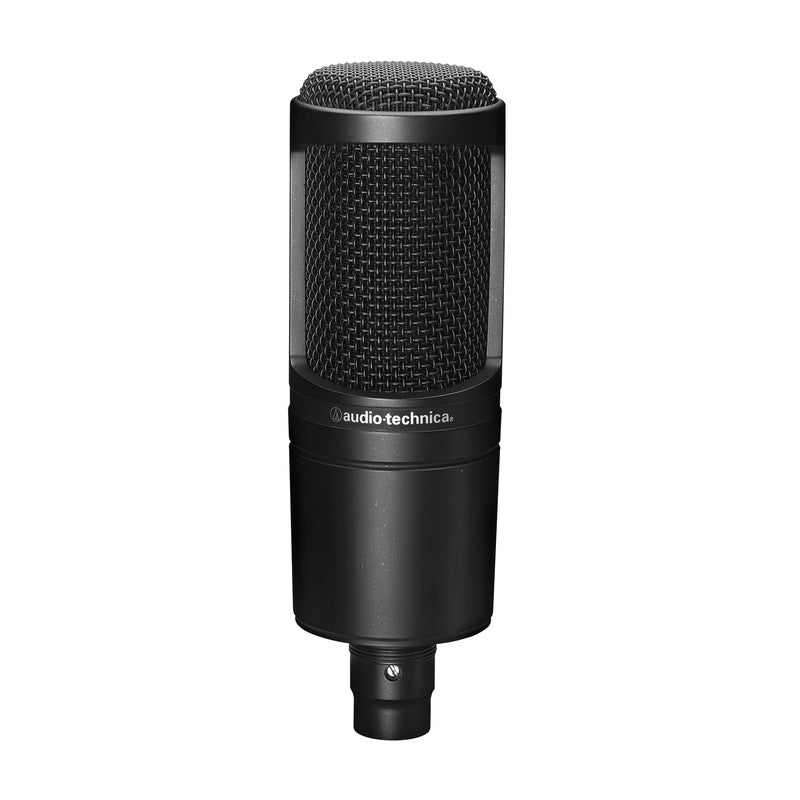

Audio-Technica AT2020 Condenser Microphone

Audio-Technica's stringent quality and consistency standards set the AT2020 apart from other mics in its class. Its low-mass diaphragm is custom-engineered for extended frequency response and superior transient response. With rugged construction for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The AT2020: the new standard for affordable side-address studio condensers.

Features

• The price/performance standard in side-address studio condenser microphone technology
• Ideal for project/home-studio applications
• High SPL handling and wide dynamic range provide unmatched versatility
• Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

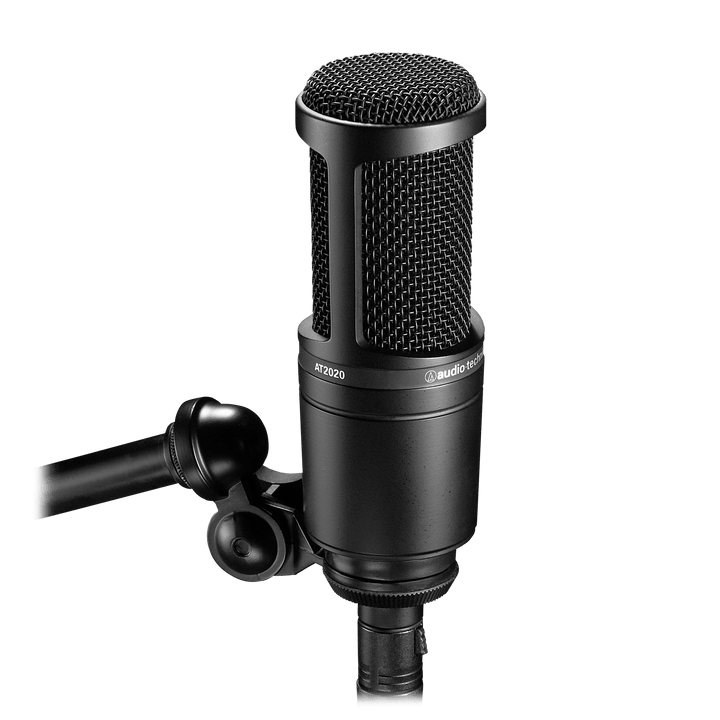

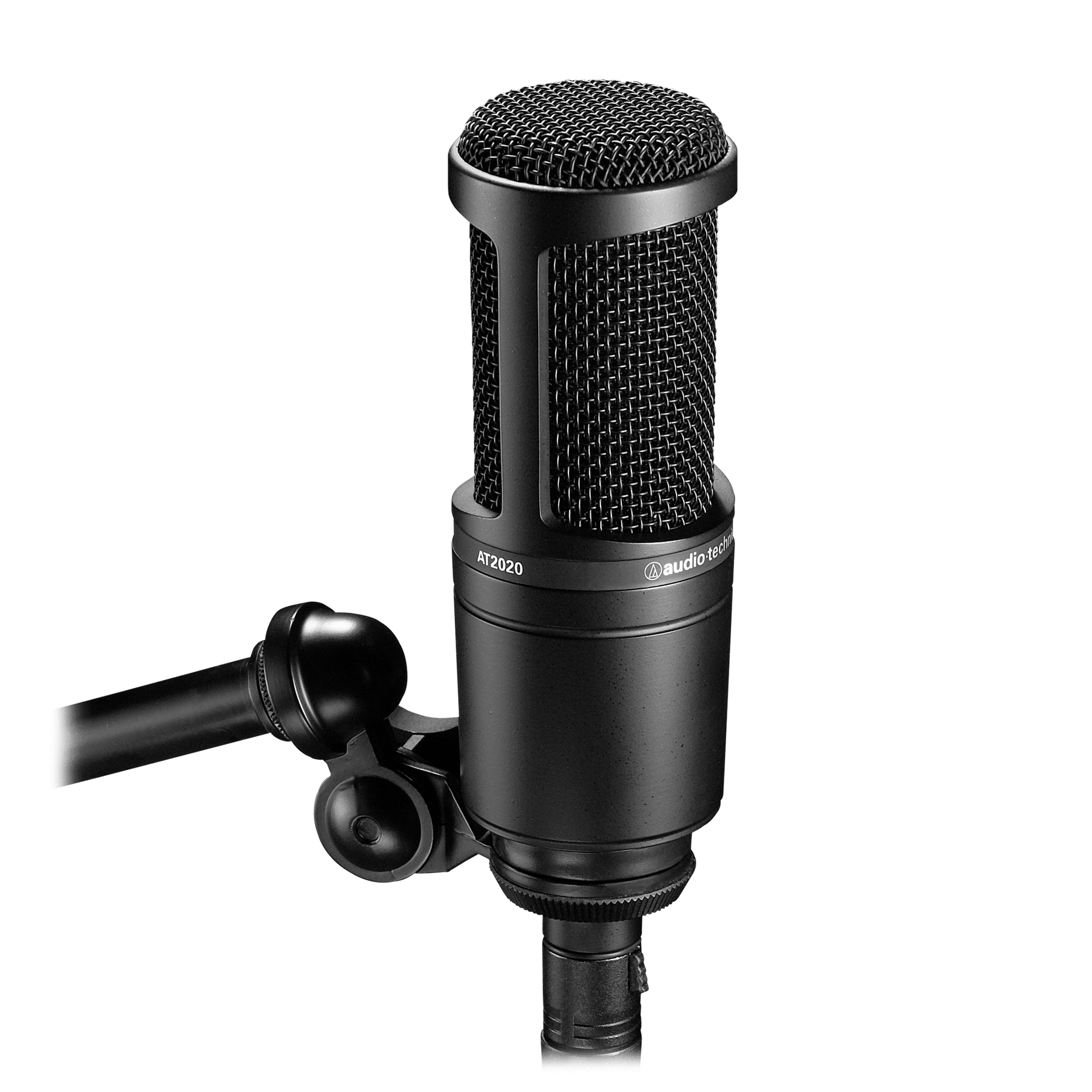

• Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

Element Signal to Noise Ratio
Condenser
74 dB, 1 kHz at 1 Pa

Polar Pattern Dynamic Range (Typical)
Cardioid
124 dB, 1 kHz at Max. SPL

Frequency Response Phantom Power Requirements
20 - 20,000 Hz
48V DC, 2 mA typical

Open Circuit Sensitivity Noise
-37 dB (14.1 mV) re 1V at 1 Pa
20 dB SPL

Impedance Weight
100 ohms
12.1 oz (345 g)

Maximum Input Sound Level Output Connector
144 dB SPL, 1 kHz at 1% T.H.D.
Integral 3-pin XLRM-type


Accessories Furnished: Stand mount; 5/8"-27 to 3/8"-16 threaded adapter; protective pouch
