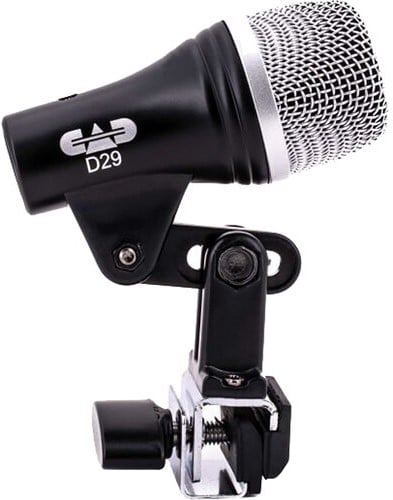

CAD D29 Dynamic Instrument Microphone

FEATURES

• For Drums, Percussion & Guitar Amps
• Dynamic, Moving-Coil Diaphragm
• Cardioid Polar Pattern
• Max SPL of 120 dB

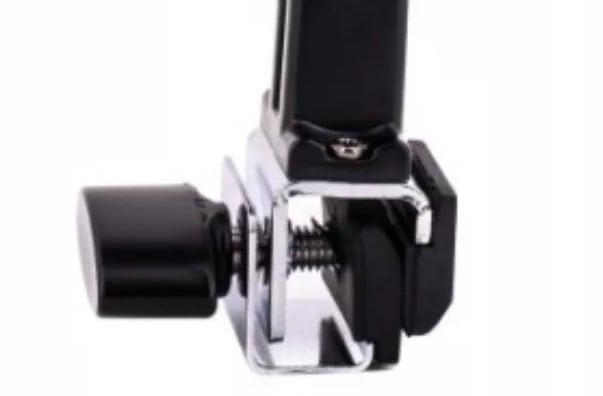

• Integrated Clip Mount

*Drum sold separately

---

DESCRIPTION

The D29 is a cardioid, moving-coil dynamic microphone specifically designed for the capture and reinforcement of tom-tom drums and other acoustic percussive instruments. The cardioid polar pattern provides off-axis rejection crucial for on-stage clarity.

Although designed with percussion in mind, excellent results are also obtained when used on most electrical and acoustical instruments The integrated drum clip is designed to facilitate rapid, optimal placement.

---

SPECIFICATIONS

• Operating Principle: Moving-coil dynamic
• Polar Pattern: Cardioid
• Frequency Response: 90Hz -13KHz
• Sensitivity: -53dBV (2.2mV) @ 1 Pa
• Impedance: 560 ohmsMax SPL: >120dB

*Drum sold separately

Model# D29
